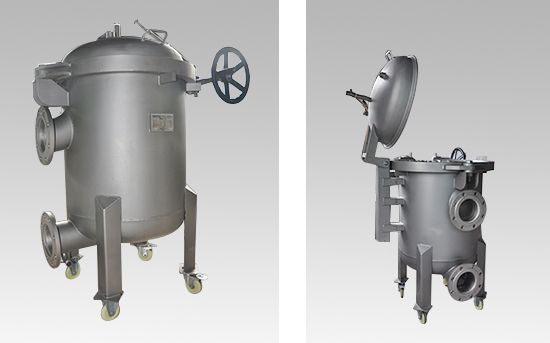

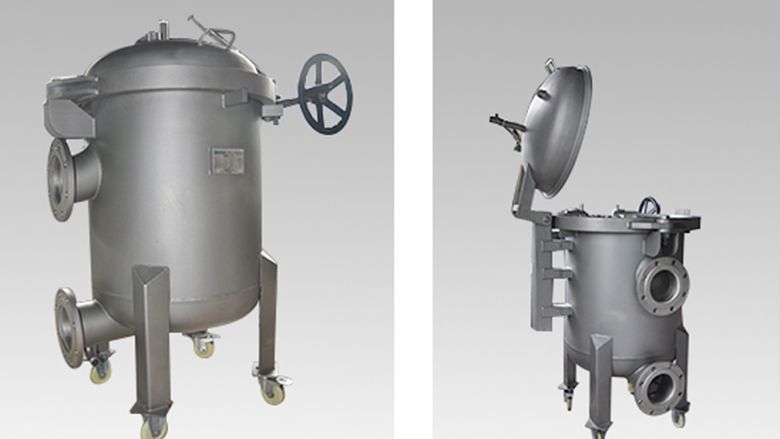

Quick open multiple bag filter

INOCO SGD-K series quick open multiple bag filter is a kind of bag filter with easy operation and high benefit, which is suitable for the application of high flow and frequent replacement of filter bag technology. It is the most suitable filter for batch production process and security filtration.

  • Product Overview
  • Drawings and Data
  • applied Range
  • Product Configuration

Technical parameters
Manufacturing standards: GB150 "CS", ASME "U" stamp.
Working pressure: 0.6 MPa ~ 5.0 MPa.
Design temperature: 0 ~ 80 ℃.
Applicable medium: water, chemicals, gas and other flammable and explosive materials.
Pressure and temperature depend on the strength and material of filter elements. Please consult us if you are in special condition.


Features
Quick-open structure is the simplest, most easy-use and safety operating system. It reduces the downtime to the shortest, boosts productivity and reduces running costs.
Three-point pressure ring ensures a good seal between filter and filter bag, attached tools make operation very easy.
Spring auxiliary balancing mechanism makes the weight of the roof as light as nothing. You can open the top cover up or down only with the hand to push and pull gently.
High quality O ring seal, to guarantee the operation is convenient and reliable.
The design of side in and bottom out ensures that the liquid can be completely discharged. Meanwhile there is tangent-position outlet can be chosen.
Standard mode is for 2 ~ 24 bag (1# and 2# bag), and the largest filter we can produce now is 40-bag ones.


Material
Shell material: # 20, 304, 316L, 2205, 2507.
Sealing gasket: Silicone, NBR, Viton.
Filter bag material: Polyester, PP, Nylon, PTFE, Glass Fiber

Model selection

Model
Flow rate(m2/HF)
N1/N2
φD
H1
H2
H3
B
SGD-K-1
160
4"
558
926
508
1727
400
SGD-K-2
200
5"
608
930
508
1727
425
SGD-K-3
240
6"
658
935
508
1727
450
SGD-K-4
320
8"
758
1016
482
2032
525
SGD-K-5
400
10"
958
1102
483
2266
600
SGD-K-6
480
10"
1008
1102
483
2266
625



NOCO representative applications of high performance filter bags




Auto Industry

Pre-treatment ,electrophoresis paint, finish machine varnish filtration; Primer paint, paint loop line filter; Parts cleaning fluid ,filling mixture, lubricating, metal working fluid and filtration before pump.




Chemical

Catalyst recovery: remove scale in the water pipe; Liquid clarification; Filter acid and alkali solvent; Filter emulsion and dispersion; Colloid in filter resin.In the fine chemical industry, removing activated carbon or catalyst is a typical example of high requirements,INOCO filter bags can meet the stringent requirements of these applications, high filtration efficiency while long service life and reliable.




Electronic

Chip production process, electronic etching groove; Actinic polishing, high purity water filter cartridge as a pre-filter for multiple modes of filtration to extend its service life, cleaning is one of the key factors in achieving success in the electronics industry, because chemicals require frequent filtration of extremely low particle content, INOCO's filter bags demonstrate the required efficiency and consistency.




Food and beverage

Beer, wine and whisky essence filtered; Remove particles from cooking oil; Remove the carbon ink from the fiber and the glue from the gelatin; Clarification of syrup concentrate and corn syrup; In addition to meeting the various and specific requirements for these applications, INOCO filter bags for starchy milk and beverages meet FDA and EEC standards for the food industry




Metal processing

Hydraulic oil filtration; Pre-treatment filtration; Recovery of precious metals; Metal processing and filling mixtures parts cleaning machines use our filter bags to reduce residual impurities on parts.




Petrochemical

Filter lubricating oil fuel additive; Oil recovery; Amine liquor glycol liquor filtration; Gas purification process; Distillation and fractionation processes; Machine wash amine; Offshore filtration station; Drilling oil and injection.




Paint and enamel

Remove the clumps of paint; Solvent filtration; Remove impurities formed in storage; Packaging line and mixing line filtration, monomer purification




Pharmacy

Recovery of expensive active materials; Recovery of catalyst; Remove activated carbon; Gelatin hormone vitamin concentrator; Filtration of herbs; Remove plasma protein; Filter brine.




Resin plastic ink and paint

Oil and polymer filtration; Dispersion polymer production; Can coating with resin plastic synthetic paper coating high purity ink-jet filter.




Water treatment

Well water filtration; Water treatment plants; Desilting; Remove scale from water pipes; It's too early to remove sand and debris from the sea; Recovery of ion exchange resin; Remove calcium crystals; Chemicals for filtration wastewater treatment; The application of dust in the filter cooling system in the surface water filtration is mainly based on the filter element in the past, but today, the high efficiency and longevity of INOCO's high performance filter bag is a more cost-effective choice.






System

INOCO now is changing from a single filter supplier to a strong comprehensive ability and technology service filter supplier. No matter what industry you are in, we can meet your fluid system requirement.

Professional manufacture
INOCO gets the GB150 and ASME manufacture license which can ensure bag filter reliability and safety for design and manufacture.

Rich filtration experience
INOCO has more than ten years filtration experience, ever serviced for 25000 enterprises and could choose the correct and suitable solution in time according to your condition.

Strict quality standard
INOCO filters are in accordance with ISO9001 quality standard, meanwhile gets the CE certificate, also can be inspected by German Rhine TUV.

Individual service
INOCO can fulfill your special requirement just like line fluorine and 2507 material or pressure more than 10 Mpa. We just want to satisfy you without MOQ requirement.

Standardization
Single bag filter including all fittings are all standardized. We can manufacture 2000 sets each month and our stock can be at least 100 sets.

Quick open structure
Easy operation and high efficiency bag filters are widely applied to application of high capacity and process of frequent replacement of bags, and are also most suitable for mass production and safe filtration.

High performance structure
It is suitable for all the harsh filtration requirement. INOCO takes high standard to design and manufacture including its high performance structure and fine cast parts.

Filter sealing structure
Three point press ring ensures well sealing for filter housing and bags. Incidental tools make operation easy and simple.

Most reasonable flow structure
The design of side in and bottom out can ensure liquid discharge completely, and provide Tangent position outlet for your option.

Filter bag
Multiple function bags for your options
Without silicone oil acupuncture blanket
Firmly welded structure
The filter material will not lose hair scattered
