Filter can be equipped with one or several (up to 300 pcs) micro porous cartridges. These are all standardized products in INOCO. Customer can reach different flow according to different material, pore diameter, length and quantity of cartridge.

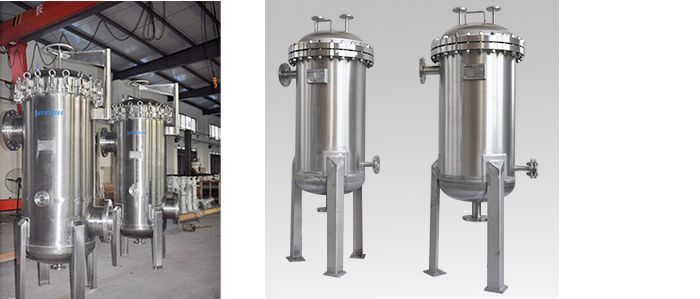

Shown as the picture, to-be filtered liquid flows in from the filter inlet, flows through the filtering layer of cartridge from outside to inside, then the clear liquid comes out through the outlet. Impurities are trapped in the deep and surface of cartridges, so that to achieve the purpose of filtration.

Filter Material Filter parts Material Shell CS、304、316L、C276、2205、Coating Cartridge Melt blown, glass fiber, PP, PTFE, Stainless steel Gasket Standard is NBR, Viton and PTFE is optional

Performance parameters Filtering accuracy 0.003μm~100μm Temperature resistant 80℃ Pressure resistant 1.6Mpa at normal temperature Capacity 0.1~500M3/H Quantity of cartridge 3~300 pcs Cartridge 250、500、750、1000mm

Others
Safe operating temperature and pressure depend on filter elements and sealing ring. If higher than the pressure and temperature, please point out in particular.
Design, manufacturing, inspection and acceptance code: , ASME“U”
Surface treatment: mechanical polishing, electrolytic polishing, sand blasting, painting

Dimensions
Connection size: DN15-DN500 or NPT / Standard thread
Drain: DN15~DN50
Vent: DN15
