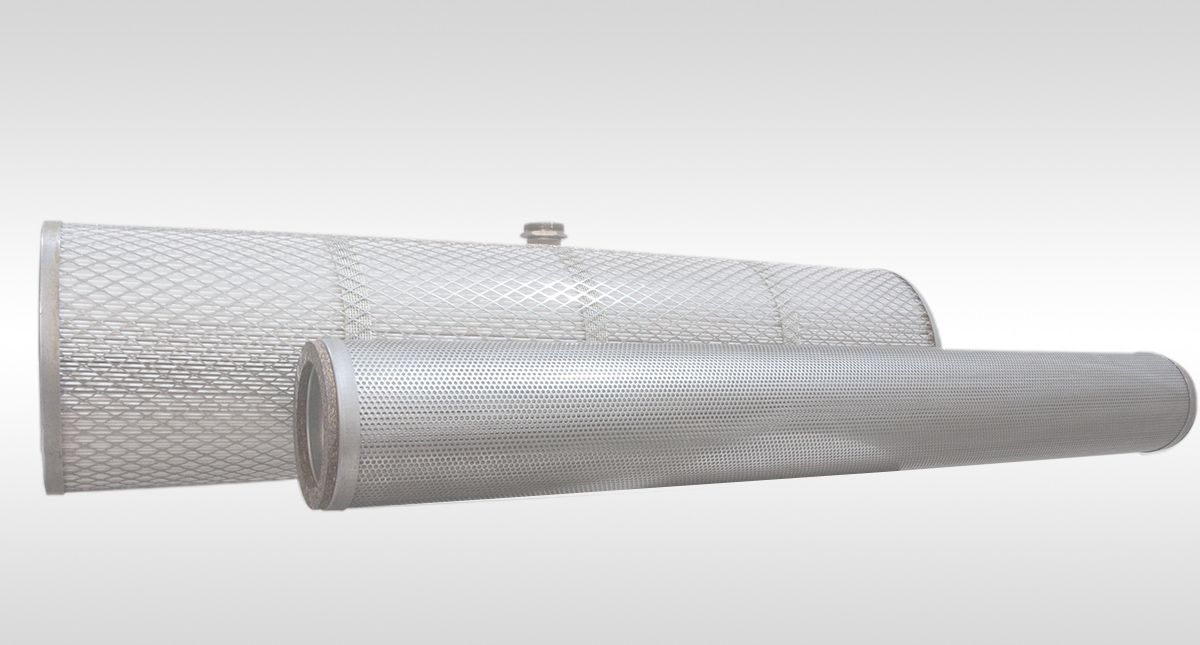

Gas-solid separation elements, is core component of dry air filter and used to remove particulate impurities from natural gas, liquefied petroleum gas, hydrogen, natural gas and petrochemical plants dry gas and etc. PF series filter elements is using multi folding techniques, compared to ordinary cylindrical cartridge, the filter area is four times more.
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration
Size: outside diameter 68,90,110,150 mm & etc
length: 300mm ~ 2000mm
Filter material: Plant fibers, Glass fibers, Polyester fibers, Metal fibers
Filter frame: Stainless steel other materials
Initial pressure drop: ≤ 0.012MPa
Filter structural strength: more than 1MPa
Design temperature range: ≤150 ℃
Filtration precision: 0.3,0.5,1,3,5,10 μm
Advantages
1. material with a high resistance to breaking strength
2. high corrosion-resistant material
3. multilayer structure
4. large flow
5. high dir t holding capacity, the replacement cycle of 12 months more
