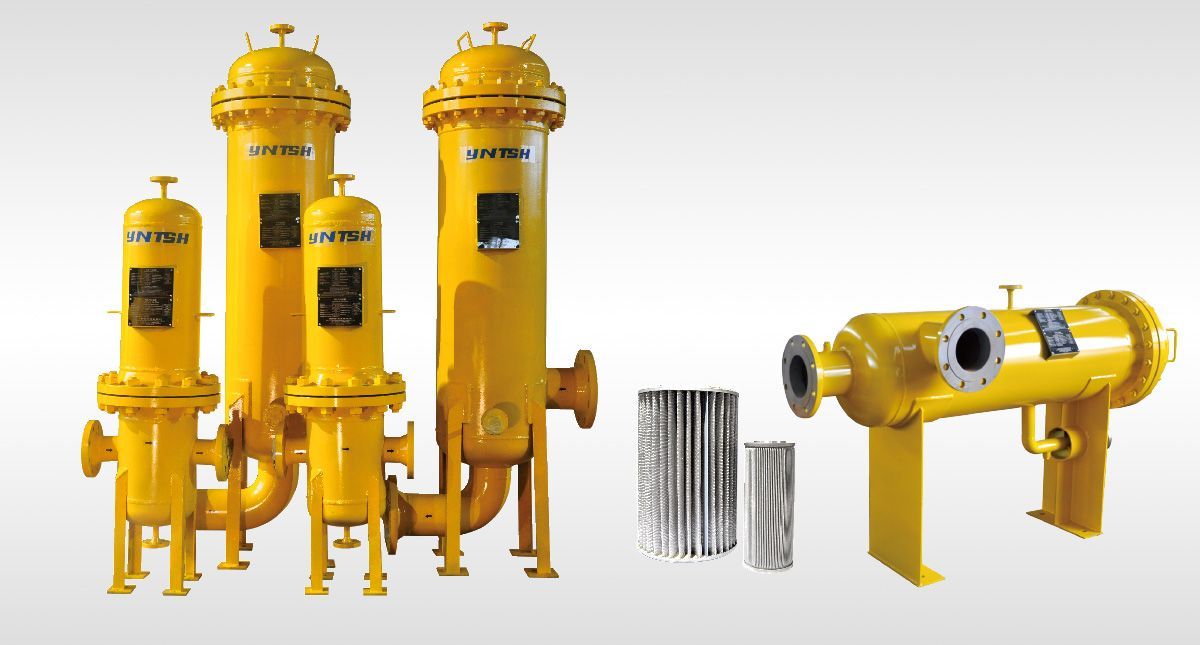

SNG series gas filters Gas filter is suitable for application of removal solid particles from the gas or working condition without liquid separation requirements.
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration
Max work pressure:40.0Mpa
Max temperature: -10~60℃ (please remind when temperature exceed 60℃)
Media: gas, manufactured gas, Liquefied petroleum gas and various non corrosive gas
Made standard: GB150 ASME
Inlet/outlet installation directions:horizontal, vertical
Installation Direction of Import and Export: Horizontal and Vertica Installation type of Inlet/outlet : Horizontal、Vertical
220#、16Mn、16MnR、16MnDR、304、316L
Elements material: Aluminum+304, fully 304
Filter accuracy: 20μm、50μm、100μm、150μm、200μm
Filter efficiency: above 99%
drain valve/relief valve/pressure gauge, pressure different indicator, pressure different switch/Along with on site indicator and remote pressure difference transmitter/Differential pressure valve/Level indicator and level switch
|
Model
|
Filter cartridge type
|
Filter cartridge quantity
|
Weight
（Kg） |
Volume
（L） |
Liquid cavity volume
（L） |
|
SNG-0.5
|
G0.5
|
1
|
30
|
3
|
1
|
|
SNG-1.0
|
G1.0
|
1
|
30
|
5
|
1.2
|
|
SNG-1.5
|
G1.5
|
1
|
42
|
10
|
2
|
|
SNG-2
|
G2.0
|
1
|
60
|
20
|
5
|
|
SNG-2.5
|
G2.5
|
1
|
85
|
40
|
8
|
|
SNG-3
|
G3
|
1
|
115
|
60
|
14
|
|
SNG-4
|
G4
|
1
|
250
|
180
|
27
|
|
SNG-5
|
G5
|
1
|
350
|
215
|
50
|
|
SNG-6
|
G6
|
1
|
800
|
420
|
85
|
|
Symbol |
G0.5
|
G1.0
|
G1.5
|
G2.0
|
G2.5
|
G3
|
G4
|
G5
|
|
A
|
300
|
400
|
450
|
500
|
600
|
650
|
900
|
900
|
|
B
|
368
|
443
|
528
|
642
|
744
|
852
|
1032
|
1192
|
|
C
|
156
|
178
|
207
|
233
|
271
|
310
|
360
|
445
|
|
D
|
114
|
133
|
168
|
273
|
273
|
325
|
426
|
508
|
|
DN
|
40
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
-
