INOCO SGA-A Series compressed air filter is an essential filtering equipment of factory or instrument gas quality improvement. INOCO filter can remove the water in air, oil, iron scale and other impurities thoroughly, the filtering efficiency can be up to 99.9％.
- Product Overview

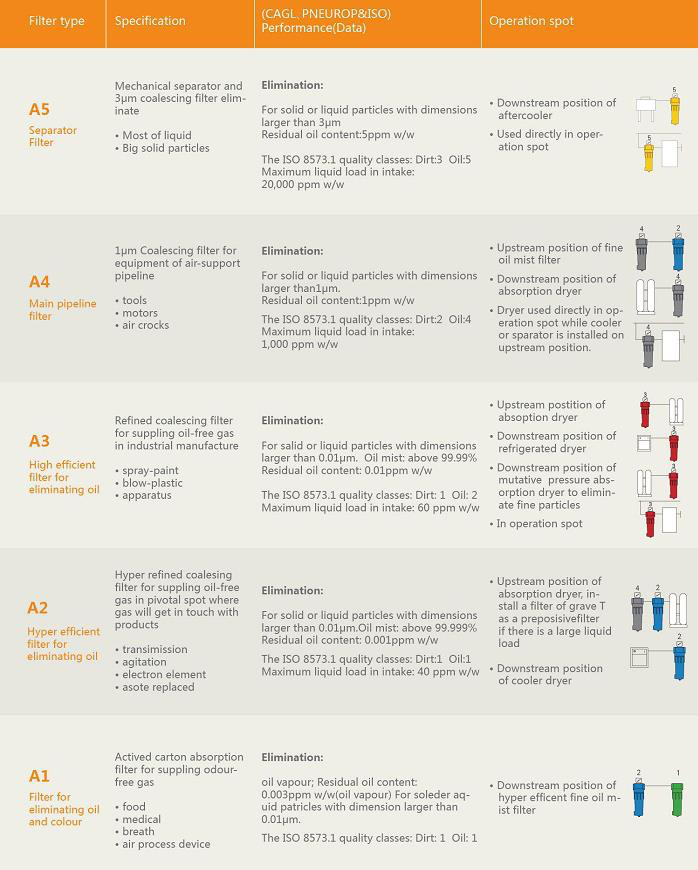

- Drawings and Data
- applied Range
- Product Configuration
1 Extend the current route to reduce pressure drop.
2 Shell of high grade Aluminium-silicon and carbon-steel
3 Coating with epoxy resin powder to improve durability and corrosion resistance.
4 Screw thread structure at inlet and outlet for easy installation with air flow indication on the shell.
5 Compact design to reduce the space required for the maintenance.
6 Precision differential pressure gauge to indicate the best time for element replacement.
7 Level indicator can easily monitor liquid level height, always pay attention to the situation need preventive maintenance, so that to avoid pollution of the downstream.
8 Reliable automatic discharging device
