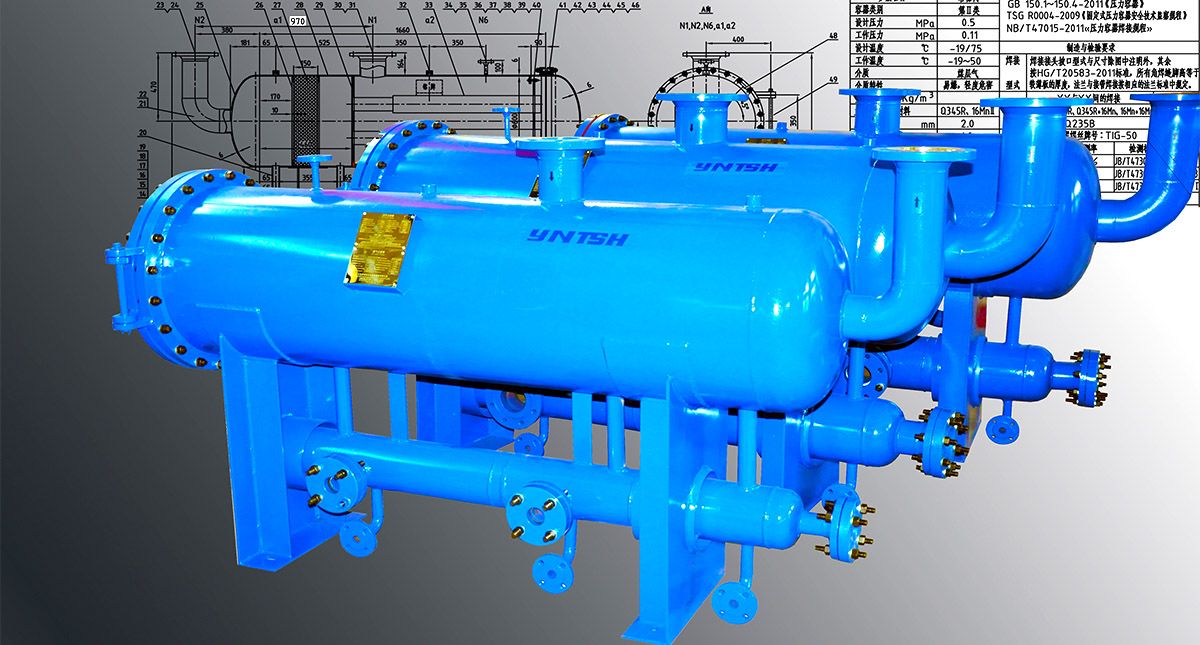

INOCO 500 Series filter separator is mainly used in the need for efficient removal of solid and liquid particles , regardless of the particle size these also can be applied. Filter separator is particularly suitable for removing dust and smoke which is extremely small. Its wide range of applications, including eliminating lubricants from processing air, removing impurity from upstream gas pipelines in regulator stations and compressor stations and removing ethanol from the gas after dehydration and etc.
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration

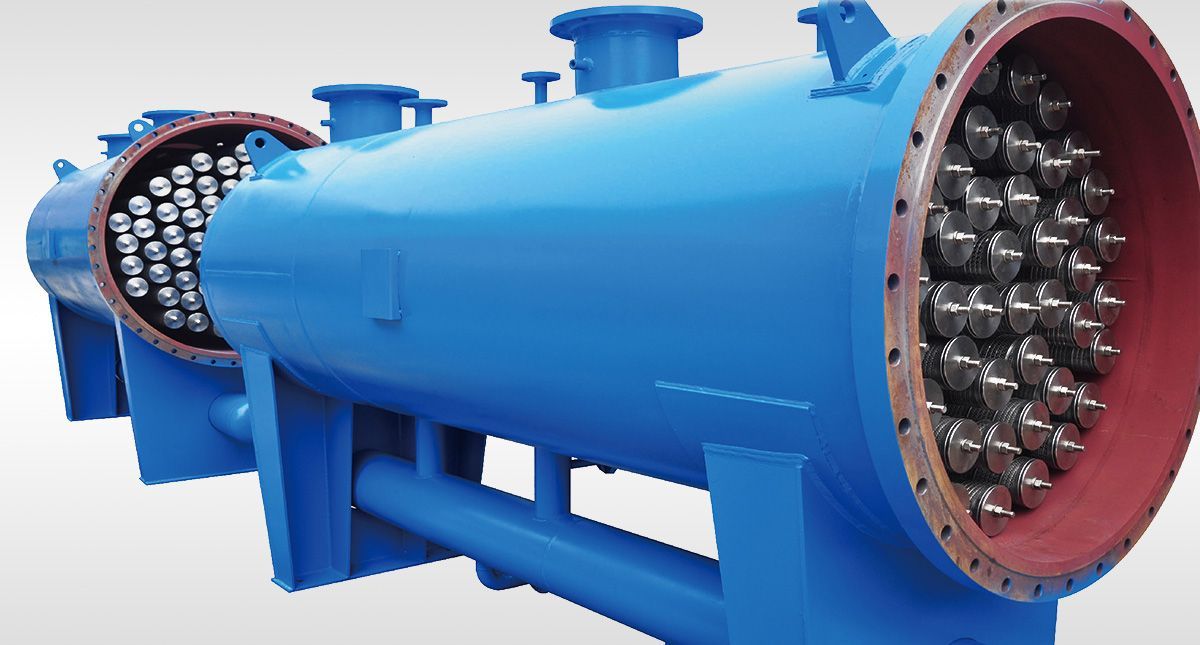

Series 500 Separating filter is combined by YNT mesh demister and INOCO coalescence elements. the droplets more than 3-5μm can be 100% separated; between 0.5 ~ 3μm droplets can be 99%separated , and the solid particles 0.5μm are 99% filtered

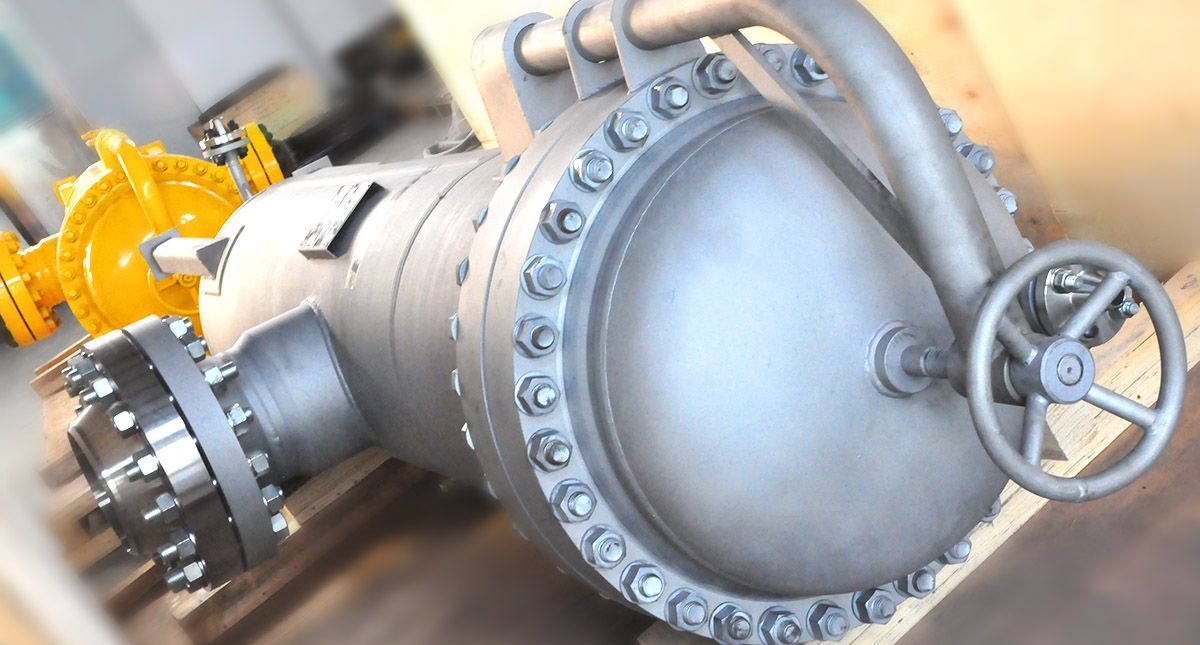

Quick open blind plate(insert type、hooptype、locked ring type)
Relief valve
Drain valve
Inlet/outlet ball valve
Differential pressure switch
Differential pressure indicator
Level indicator
Level switch
Skid-mounted
1. Design code ASME sec. vill div.1
2. Available material: Carbon steel, SS316/304...
3. Finish: Blasted and painted for cs glass bead for ss vessels,or to meet spec.
4. Bolts and hex nuts: Plated carbon steel,or to meet specification
5. O’RINGS: buna n or epdm standard viton, TEV or other optional
1. Work pressure: 0.1~40.0Mpa
2. Work temp: -40~+300℃
3. Separate accuracy: 0.3、1、3、5μm
4. Separate efficiency: 99.98%
5. Max flowrate: 6500000Nm3/h
|
Model |
Vessel diameter |
Liquid chamer |
Inlet outlet |
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
SN500-6
|
6 5/8
|
6 5/8
|
2”
|
80
|
65
|
12
|
21
|
45
|
34
|
19
|
62
|
|
SN500-8
|
8 5/8
|
6 5/8
|
3”
|
89
|
73
|
13
|
27
|
48
|
35
|
20
|
68
|
|
SN500-10
|
10 3/4
|
6 5/8
|
3”
|
99
|
82
|
14
|
35
|
50
|
36
|
21
|
76
|
|
SN500-12
|
12 3/4
|
6 5/8
|
4”
|
109
|
90
|
15
|
41
|
53
|
37
|
22
|
84
|
|
SN500-16
|
16
|
6 5/8
|
6”
|
130
|
106
|
20
|
53
|
61
|
39
|
23
|
96
|
|
SN500-18
|
18
|
8 5/8
|
6”
|
136
|
111
|
21
|
59
|
65
|
42
|
25
|
102
|
|
SN500-20
|
20
|
8 5/8
|
8”
|
143
|
120
|
21
|
66
|
67
|
43
|
26
|
114
|
|
SN500-24
|
24
|
10 3/4
|
8”
|
165
|
138
|
22
|
78
|
73
|
47
|
29
|
126
|
|
SN500-30
|
30
|
10 3/4
|
10”
|
189
|
160
|
24
|
99
|
79
|
50
|
32
|
144
|
|
SN500-36
|
36
|
12 3/4
|
12”
|
224
|
193
|
26
|
132
|
84
|
55
|
36
|
186
|
|
SN500-42
|
42
|
14
|
14”
|
260
|
224
|
30
|
150
|
97
|
59
|
40
|
204
|
|
SN500-48
|
48
|
14
|
16”
|
274
|
238
|
30
|
170
|
102
|
62
|
42
|
222
|
|
SN500-54
|
54
|
16
|
18”
|
314
|
258
|
34
|
189
|
112
|
67
|
47
|
246
|
|
SN500-60
|
60
|
16
|
20”
|
343
|
282
|
36
|
210
|
128
|
70
|
50
|
270
|
|
SN500-72
|
72
|
18
|
24”
|
361
|
288
|
41
|
219
|
135
|
78
|
57
|
276
|
