INOCO high performance top-in filter with advanced design ensures outstanding filtration efficiency, suitable for strict application requirement with combination of outstanding filtration performance, high reliability and convenient operation.
- Product Overview

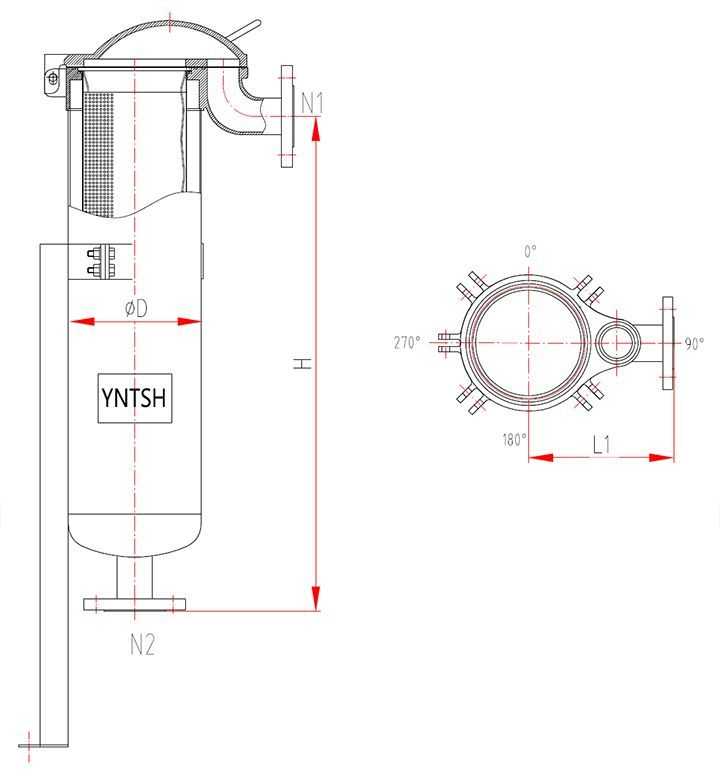

- Drawings and Data
- applied Range
- Product Configuration
Suitable for harsh filtration requirements.

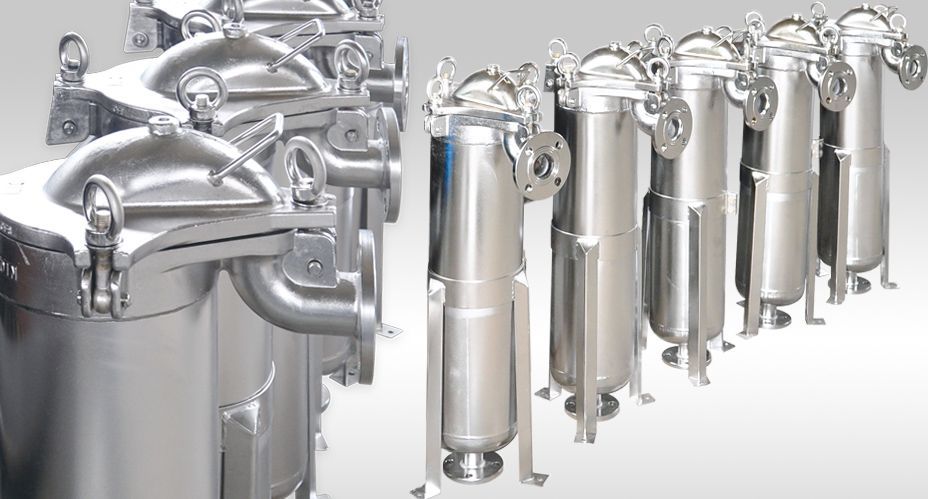

The inlet of SGD-IN series bag filter is on the side and liquid will flow into the filter from the top. This design minimizes the unfiltered fluid, and is convenient to replace the filter bags. It also provides excellent sealing effect.
Advantages
Top in and top cover structure
Overall impaction and sealing of top cover
Rotary type eye bolt
Electrolytic polishing punched filter basket
Adjustable support leg
Easy and fast to change bags
No leakage of sealing
Convenient and firm quick-open device
Best filter bag support and easy to clean
Stable and adjustable structure
Technical parameters
Design, manufacture, inspection and acceptance refer to HG21637-91,GB150-2011.
Flange standard：HG GB SH HGJ JB ANSI JIS.
Connection type: Thread, hoop, flange.
Inlet& outlet size：1-1/2”.
Drain size：1/4”.
Filter bag model：1＃ 2＃，3#，4#.
Filtration accuracy：0.5um-800um.
Design pressure： 1.6Mpa.
Design temperature：120℃.
Material
Shell material: # 20, 304, 316L, 2205, 2507.
Sealing gasket: Silicone, NBR, Viton.
Filter bag material: Polyester, PP, Nylon, PTFE, Glass Fiber
Model selection
|
Mode
|
Bag model
|
Flow rate
M3/H
M3/H |
Shell height
(MM)
(MM) |
Total height
(MM)
(MM) |
Shell diameter
(MM)
(MM) |
Bag diameter
(MM)
(MM) |
Inlet &outlet
|
|
SGD-IN-1
|
1
|
20
|
500
|
720
|
Φ219
|
Φ170
|
1''-4''
|
|
SGD-IN-2
|
2
|
40
|
700
|
1070
|
Φ219
|
Φ170
|
1''-4''
|
System
INOCO now is changing from a single filter supplier to a strong comprehensive ability and technology service filter supplier. No matter what industry you are in, we can meet your fluid system requirement.Professional manufacture
INOCO gets the GB150 and ASME manufacture license which can ensure bag filter reliability and safety for design and manufacture.
Rich filtration experience
INOCO has more than ten years filtration experience, ever serviced for 25000 enterprises and could choose the correct and suitable solution in time according to your condition.
Strict quality standard
INOCO filters are in accordance with ISO9001 quality standard, meanwhile gets the CE certificate, also can be inspected by German Rhine TUV.
Individual service
INOCO can fulfill your special requirement just like line fluorine and 2507 material or pressure more than 10 Mpa. We just want to satisfy you without MOQ requirement.
Standardization
Single bag filter including all fittings are all standardized. We can manufacture 2000 sets each month and our stock can be at least 100 sets.
Quick open structure
Easy operation and high efficiency bag filters are widely applied to application of high capacity and process of frequent replacement of bags, and are also most suitable for mass production and safe filtration.
High performance structure
It is suitable for all the harsh filtration requirement. INOCO takes high standard to design and manufacture including its high performance structure and fine cast parts.
Filter sealing structure
Three point press ring ensures well sealing for filter housing and bags. Incidental tools make operation easy and simple.
Most reasonable flow structure
The design of side in and bottom out can ensure liquid discharge completely, and provide Tangent position outlet for your option.
Filter bag
Multiple function bags for your options
Without silicone oil acupuncture blanket
Firmly welded structure
The filter material will not lose hair scattered
