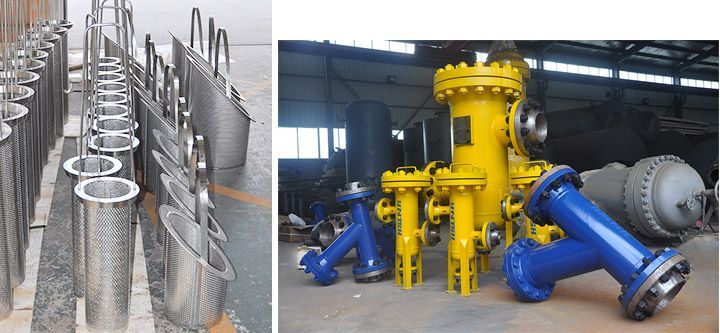

Pipeline strainer is the necessary pipeline parts in the industry production ,the strainers are installed on the pipeline to removing the solids impurity of the liquid , to ensure the pipeline equipment under good condition operation ,make the liquid more purity which is for getting excellent industry products . After a period of time operation ,open the top cover ,take out the screen basket ,after the cleaning ,the basket could return to be refreshed . It is having wide application in petroleum ,chemical ,pharmacy ,foods etc industries .

Overview :
1、the filter fabrication is as per JB741-80 and GB150-89 standard to design, fabricate and inspect .ASME U standard is available .
2、the filter strength and sealing leakage testing is as per GB150 /ASME .
3、The flange standard is GB81-59 ,other available standard are : HG、ANSI、ASME、HGJ、IN、JIS etc .
4、The flange connection types are : loose flange ,insert welding flange ,thread ,quick clamp etc .
5、The filter element is stainless steel mesh generally ,V-slot or multi-layers sintered screen is available .

Technical parameters ：

Code	SBL
Specifications	DN15~DN1000
Body material	20#、 304、 304L、 316 、316L、Duplex SS ,Teflon lining
Screen	304、316L、Teflon material
Filtration precision	10~1000mesh
Working pressure	0.1~42Mpa
Working temperature	-196~480℃
Design standard	HGJ532-91、GB150-98、ASME

Filter categorize：

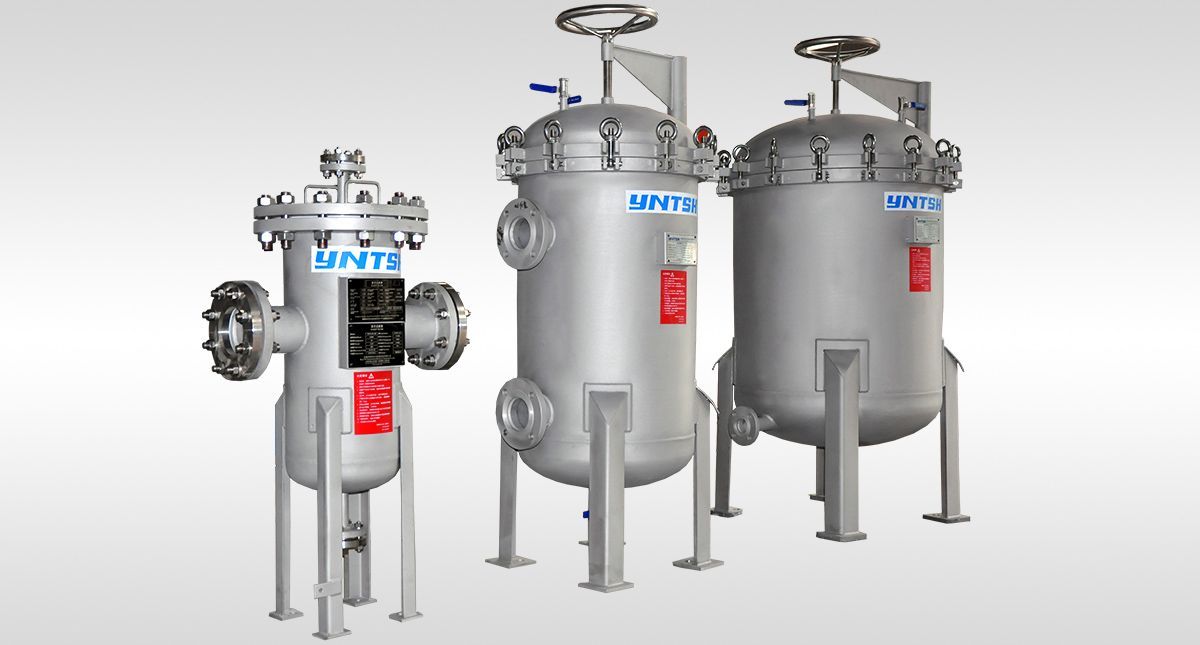

Material categorize :carbon steel filter ,SS filter ,Alloy steel filter ,Teflon lining filter ;
Medium categorize : gas filter ,pre-pump filter ,recycle water filter ,diesel filter ,petrol filter ,seawater filter

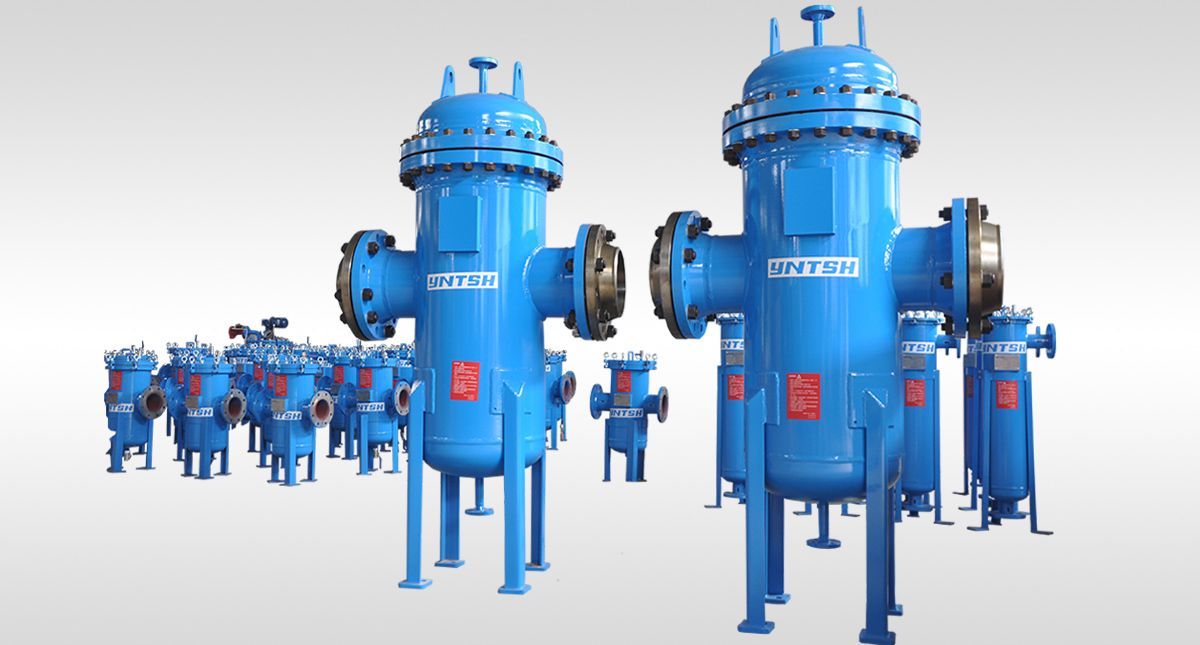

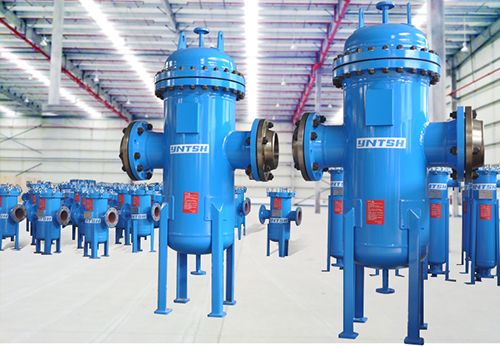

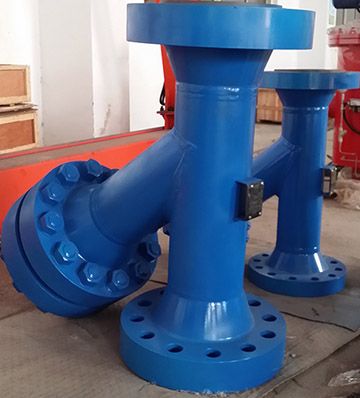

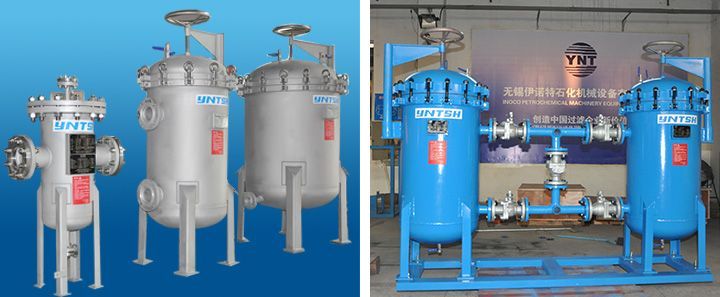

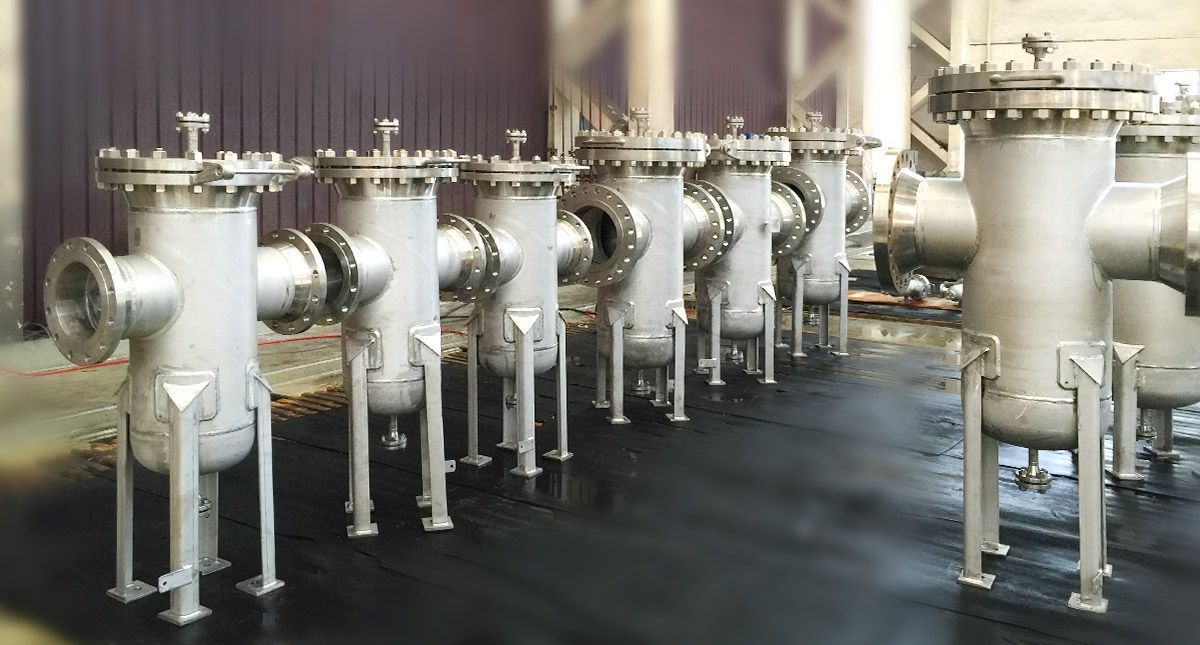

Name categorize : industry filter ,duplex filter ,high pressure filter ,T model filter ,temporary filter ,conical filter ,basket filter .
