Based on the research and development experience and technology accumulation in membrane process for many years, INOCO provides all kinds of high-efficiency, high-quality micro-porous membrane filter system for the global customers with using most advanced technology and production equipments. Filter applies reasonable fluid mechanics technology, and can design, manufacture, inspect and accept according to GB150-1998 < Water Treatment Equipment >
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration

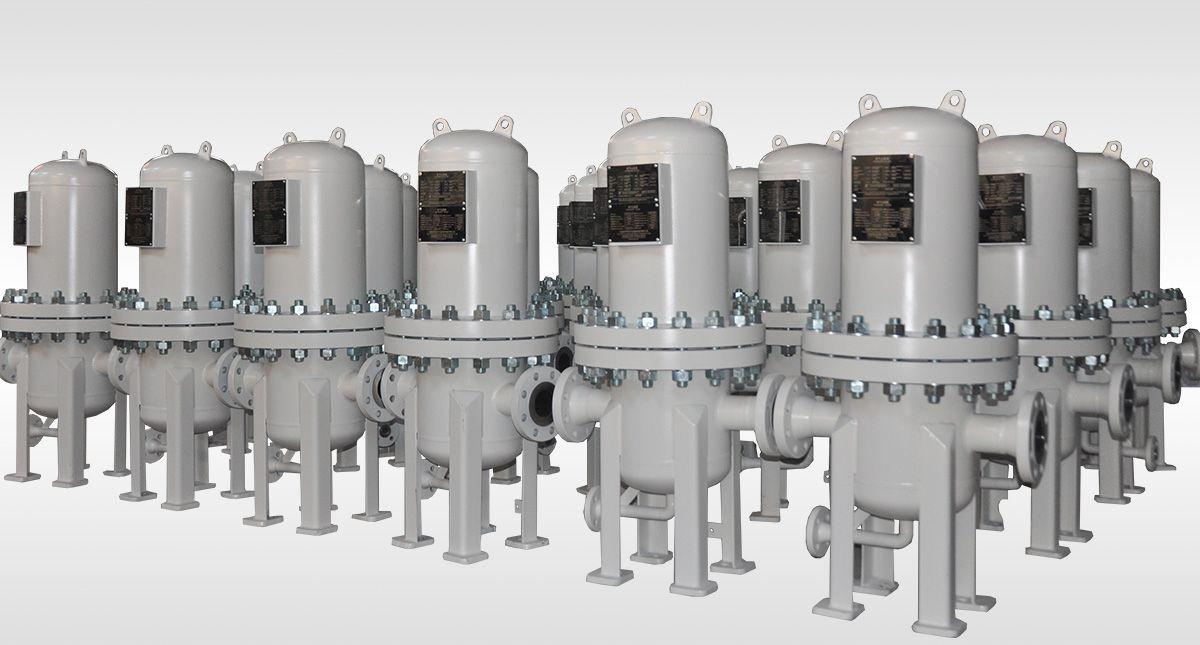

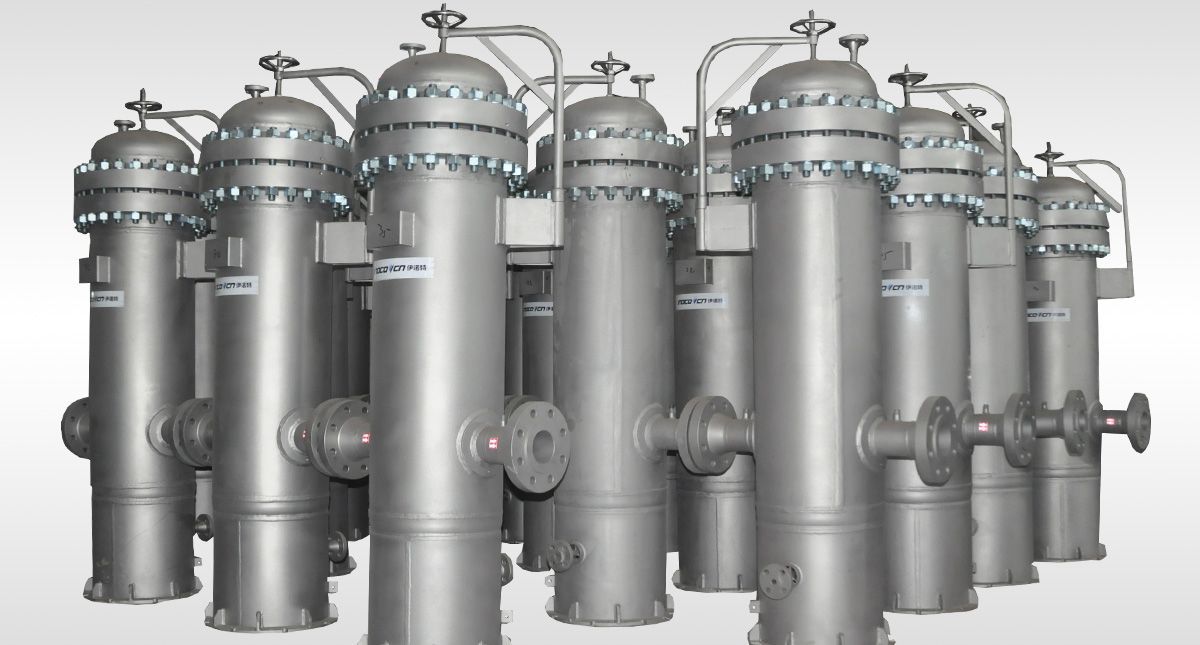

SGA-S series gas cartridge filter
Filter connection size: DN15-DN500、NPT、M series
Drain outlet：DN50
Vent：DN15
Discharge port：DN25
Detail size refers to the left picture!
Media:
water, chemical, air, nitrogen, oxygen, hydrogen etc.
Capacity：
Standard Mode accommodate 12-300 pcs folding membrane elements, the filter length could be 10,20,30,40 (Unit inch)
Flow rate：
1~10000Nm3/H; Air as unit
Shell material：
CS、304、304L、316、316L、C276、2205、coating
Filter accuracy：
0.003 micron ~ 50 microns
Standard：
Pressure and temperature：
0-2.5Mpa / 0-260℃
The maximum pressure and temperature only shows vessel level, the safe operating temperature and pressure will depend on the filter element and seal ring.
Polypropylene folded elements
Teflon elements
Nylon elements
Polyvinylidene fluoride absolute elments
Perfluorinated elements
Stainless steel fiber felt elements
Stainless steel sintered mesh elements
Stainless steel powder sintered elements
|
Rated capacity
（m3/min） |
Elements info
|
Inlet / outlet
|
External dimension
（mm） |
||||||
|
QTY
|
Len.
|
D (mm)
|
Connection
|
D
|
W
|
H
|
H1
|
H2
|
|
|
1
|
1
|
5〃
|
DN25
|
Flange / clamp
|
Φ102
|
222
|
370
|
|
250
|
|
2
|
10〃
|
510
|
370
|
||||||
|
4
|
20〃
|
DN40
|
760
|
610
|
|||||
|
6
|
3
|
10〃
|
DN50
|
Flange
|
Φ184
|
344
|
780
|
286
|
400
|
|
10
|
20〃
|
DN65
|
1050
|
296
|
640
|
||||
|
15
|
5
|
Φ234
|
414
|
1170
|
376
|
653
|
|||
|
20
|
DN80
|
1210
|
391
|
||||||
|
30
|
7
|
DN100
|
Φ274
|
454
|
1260
|
663
|
|||
|
40
|
9
|
Φ306
|
506
|
1330
|
415
|
685
|
|||
|
60
|
12
|
DN125
|
Φ356
|
556
|
1350
|
424
|
698
|
||
|
15
|
|||||||||
|
80
|
Φ406
|
606
|
1410
|
710
|
|||||
|
19
|
DN150
|
1440
|
434
|
||||||
|
100
|
444
|
||||||||
|
120
|
29
|
Φ506
|
726
|
1560
|
468
|
735
|
|||
|
Rated capacity t/h
（m3/min）
|
Cartridge specs. |
Inlet & outlet
|
Dimension （mm） |
||||||
|
Qty. |
Length |
D (mm)
|
Connection Type |
D
|
W
|
H
|
H1
|
H2
|
||
|
1
|
1
|
5〃
|
DN25
|
Flange / Hoop |
Φ102
|
222
|
370
|
|
250
|
|
|
2
|
10〃
|
510
|
370
|
|||||||
|
4
|
20〃
|
DN40
|
760
|
610
|
||||||
|
6
|
3
|
10〃
|
DN50
|
Flange |
Φ184
|
344
|
780
|
286
|
400
|
|
|
10
|
20〃
|
DN65
|
1050
|
296
|
640
|
|||||
|
15
|
5
|
Φ234
|
414
|
1170
|
376
|
653
|
||||
|
20
|
DN80
|
1210
|
391
|
|||||||
|
30
|
7
|
DN100
|
Φ274
|
454
|
1260
|
663
|
||||
|
40
|
9
|
Φ306
|
506
|
1330
|
415
|
685
|
||||
|
60
|
12
|
DN125
|
Φ356
|
556
|
1350
|
424
|
698
|
|||
|
15
|
||||||||||
|
80
|
Φ406
|
606
|
1410
|
710
|
||||||
|
19
|
DN150
|
1440
|
434
|
|||||||
|
100
|
444
|
|||||||||
|
120
|
29
|
Φ506
|
726
|
1560
|
468
|
735
|
||||
