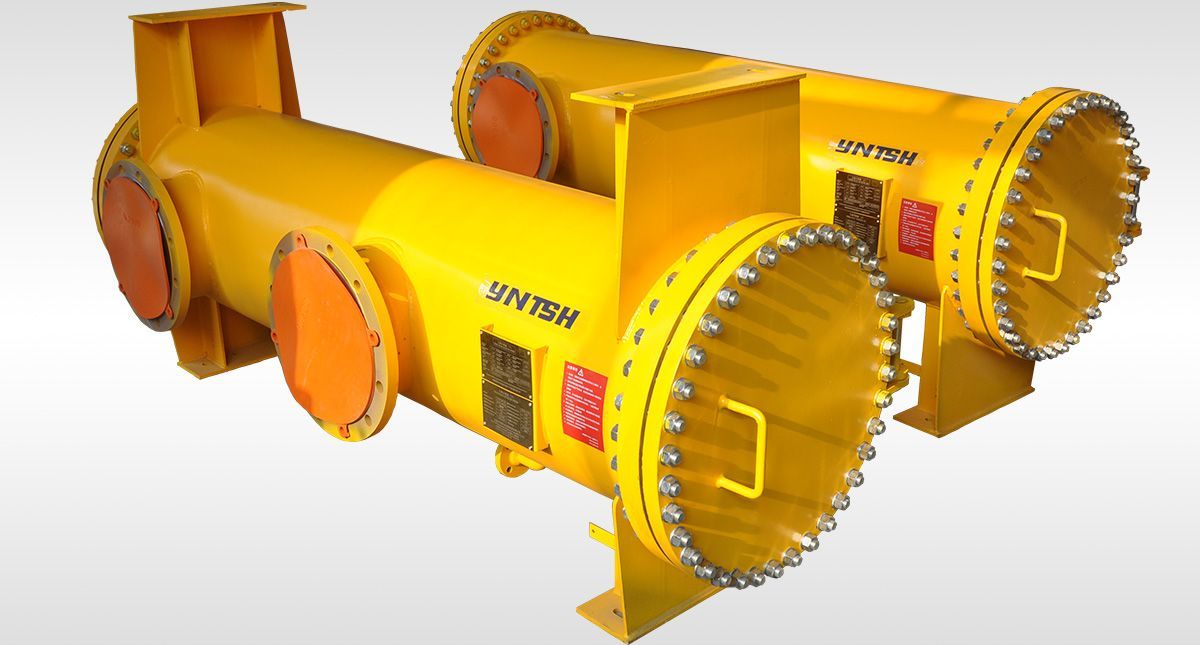

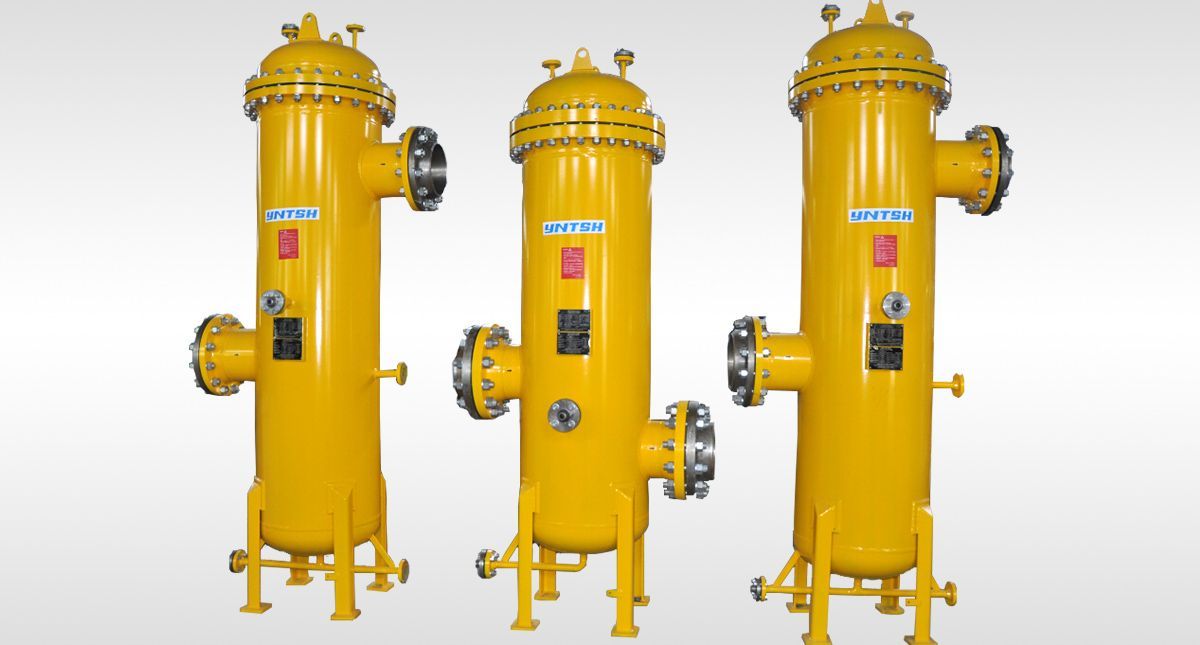

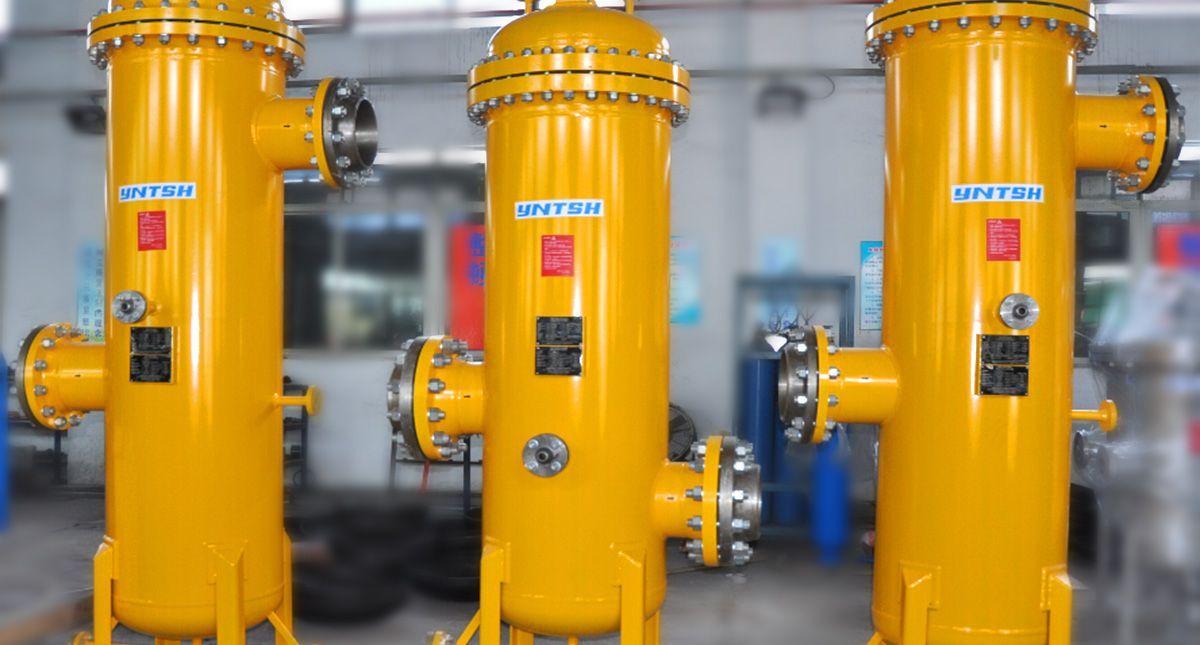

Dry Gas Filter

INOCO LCN-1 Series dry gas filter working principle

  • Product Overview

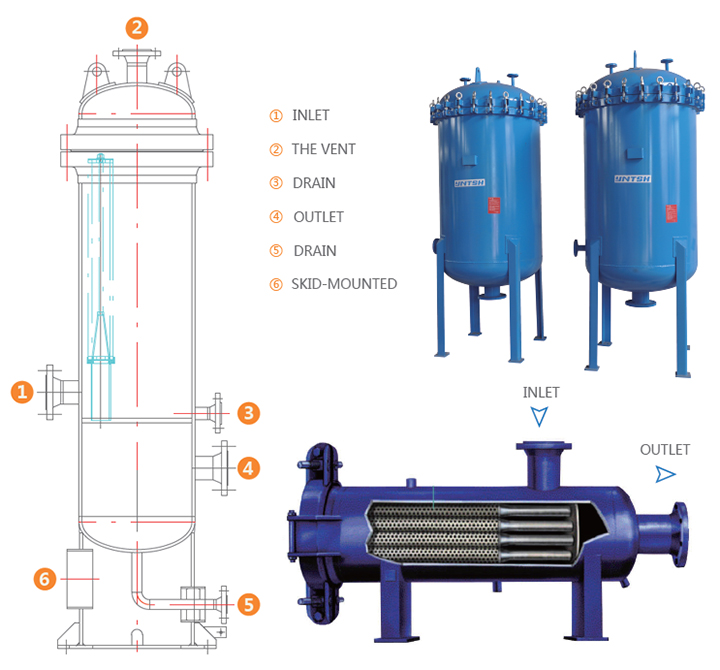

  • Drawings and Data
  • applied Range
  • Product Configuration

INOCO LCN-1 Series dry gas filter working principle:

After the containing impurities gas into the filter, large particles collide with deflector inside the filter then start separating from the natural gas. fine solid particles will be removed when the gas flow from the outside through filter element. Finally, the purified gas exiting from the filter.
One end of the device using the quick opening blind or blind flanges, open and close when to replace the filter. Using quick open closure can turn on or off real fast, just need three minute so saving time and avoiding some security risk when replace the filter elements.。

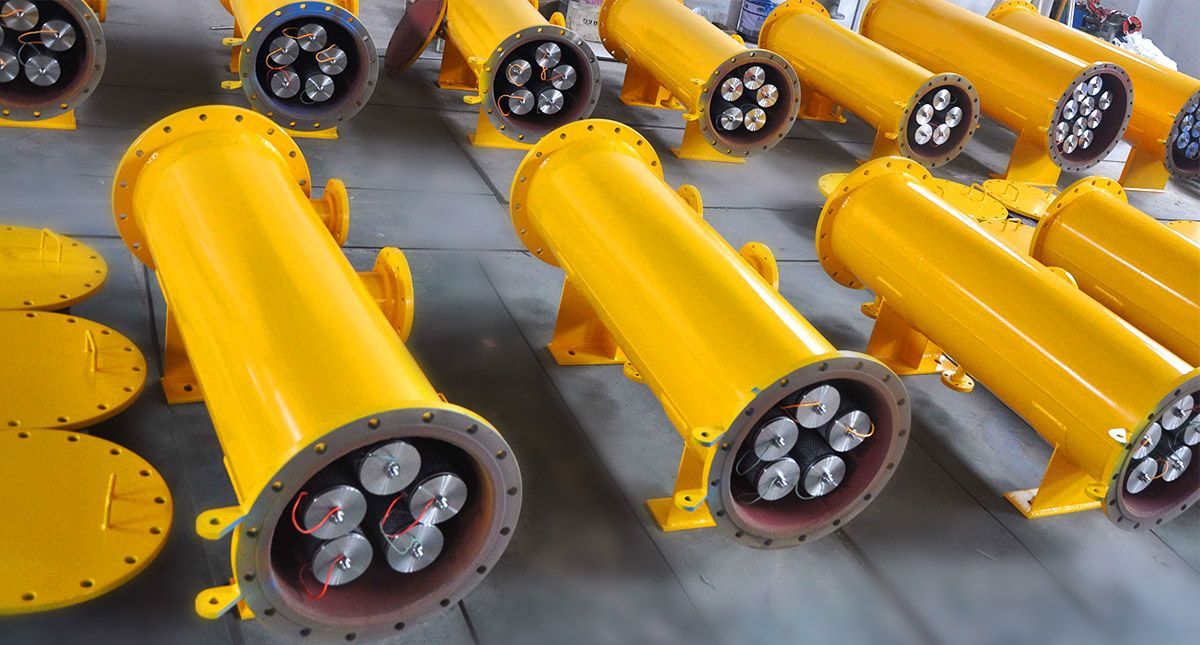

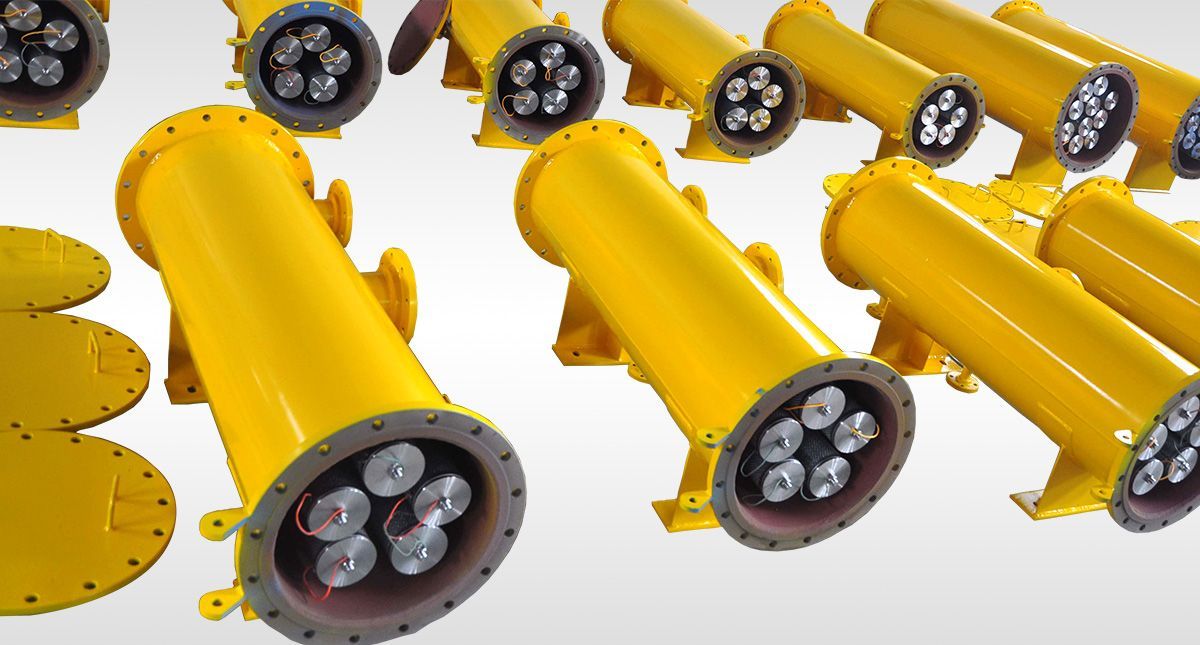

Filter uses advanced and reliable elements, in order to ensure performance of the device. A wide selection of filter material, such as ultrafine glass fiber, polyester, multilayer fiberglass, polypropylene, nylon and so on. according to different requirements Select the type of cartridge.

Parameter

Manufactured standard: GB150 or ASME
Vessel material: CS ,stainless steel (please remind when temperature exceed 60℃)
Filter accuracy: 0.1μm、1μm、2μm、3μ m、5μm、10μm
Filtration efficiency: 99.98%
Installation: Vertical or Horizontal


Application

Gas Dust removing
Remove the desiccant particles on drying bed downstream
Removal of catalyst particles on catalyst bed downstream
For metering and regulating stations
For city gas distribution system
Protect downstream equipment
