SF series stainless steel gas-solid separator elements

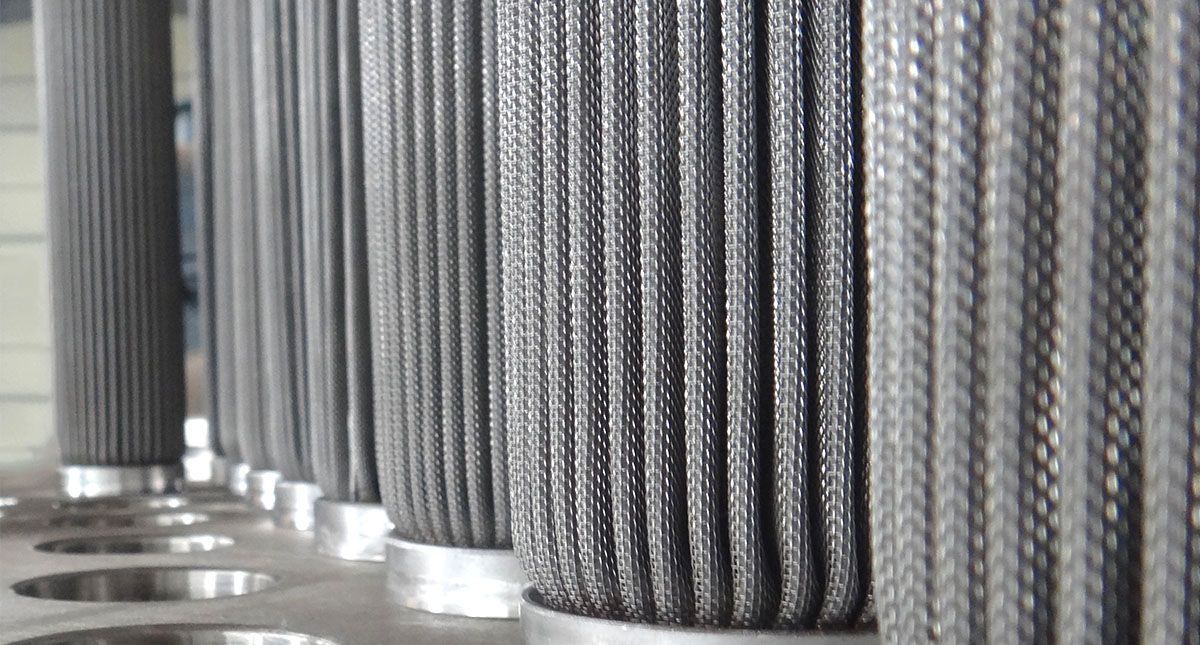

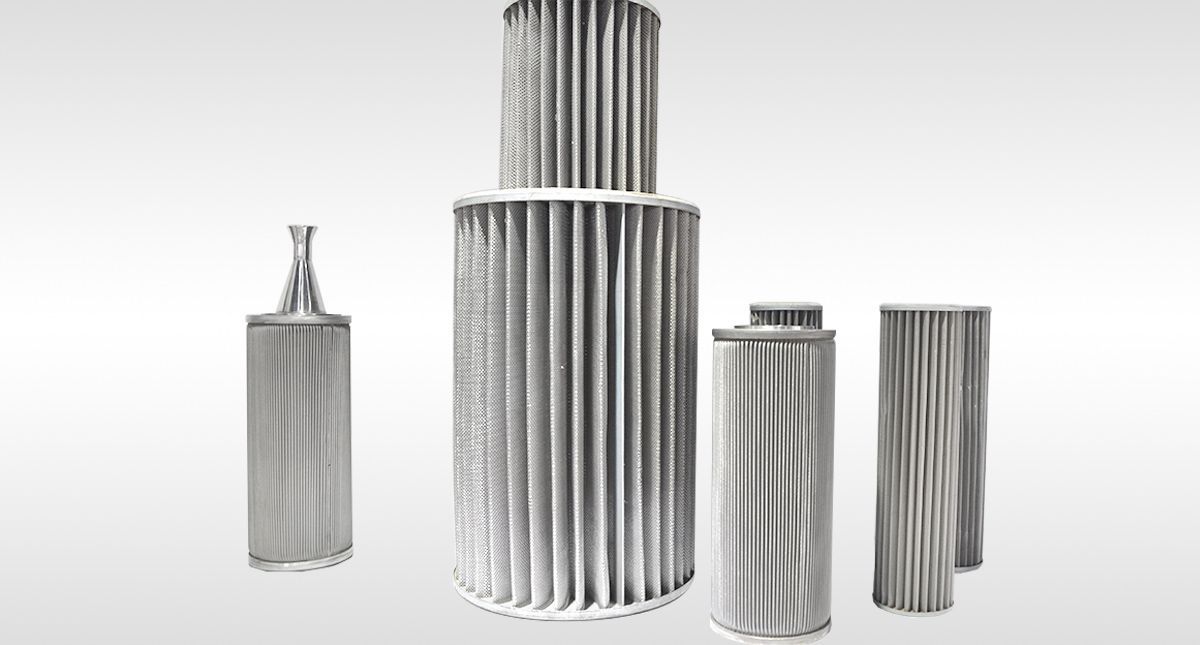

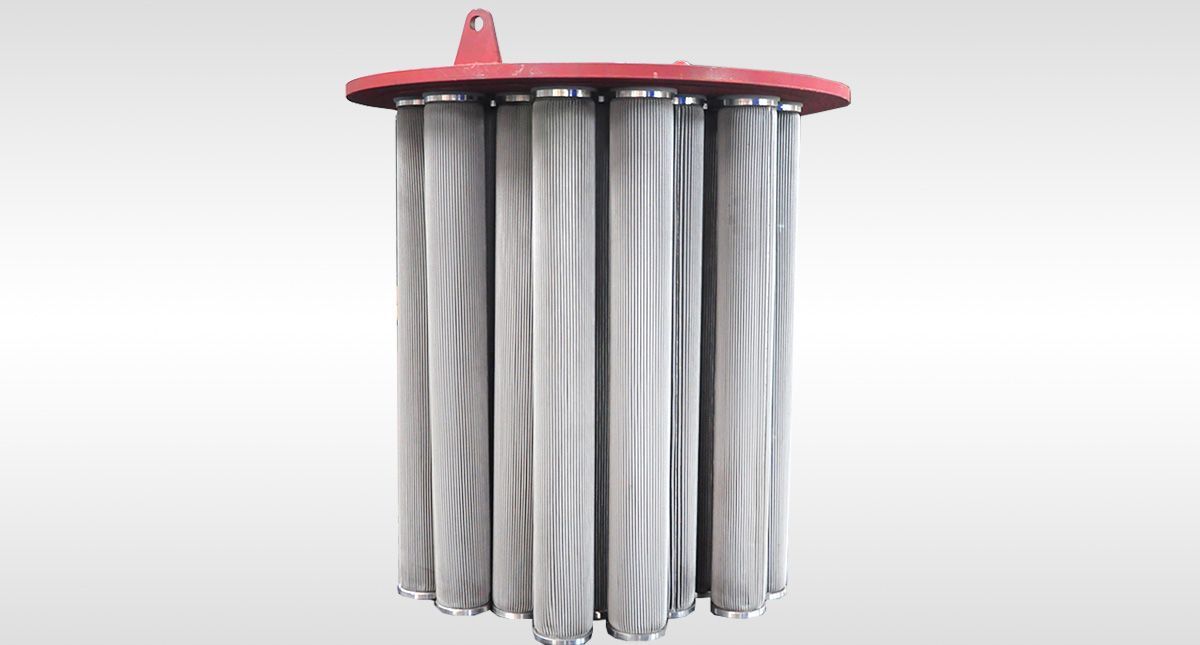

INOCO SF stainless steel plaiting elements mainly use 316L stainless steel fiber sintered felt and stainless steel woven mesh, elements sealing surface use arc welding and adhesive bonding process, the filter layers use multi-fold plaiting process and constitute a complete filter element, no leakage, no medium shedding phenomenon; stainless steel fiber sintered felt is made of porous and depth process fiber by high temperature; stainless steel wire mesh is made of stainless steel wire by knitting.
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration
Characteristic
1. Stainless steel filter element with high porosity, good air permeability, resistance is small, and low pressure difference.2. Stainless steel filter element is folded into a folded shape, having large filtering area and solid holding capacity.
3. Stainless steel filter elements have high temperature resistance and corrosion resistance.
4. The regeneration performance is good, with chemical cleaning, high temperature and ultrasonic cleaning can be used repeatedly.
5. All stainless steel structure,good chemical compatibility.
Element material
|
Support(L)
|
304、316L
|
|
Filter material (L)
|
304、316L、316L / Fiber felt
|
|
Liquid accuracy (μm)
|
2、3、5、10
|
|
Gas accuracy (μm)
|
0.25、1、2、3、5、10
|
|
Max temp (℃ )
|
250℃/12Kg
|
Element parameters
|
Diameter (mm)
|
68、110、120、150、190
|
|
Length (mm)
|
250、510、1016
|
