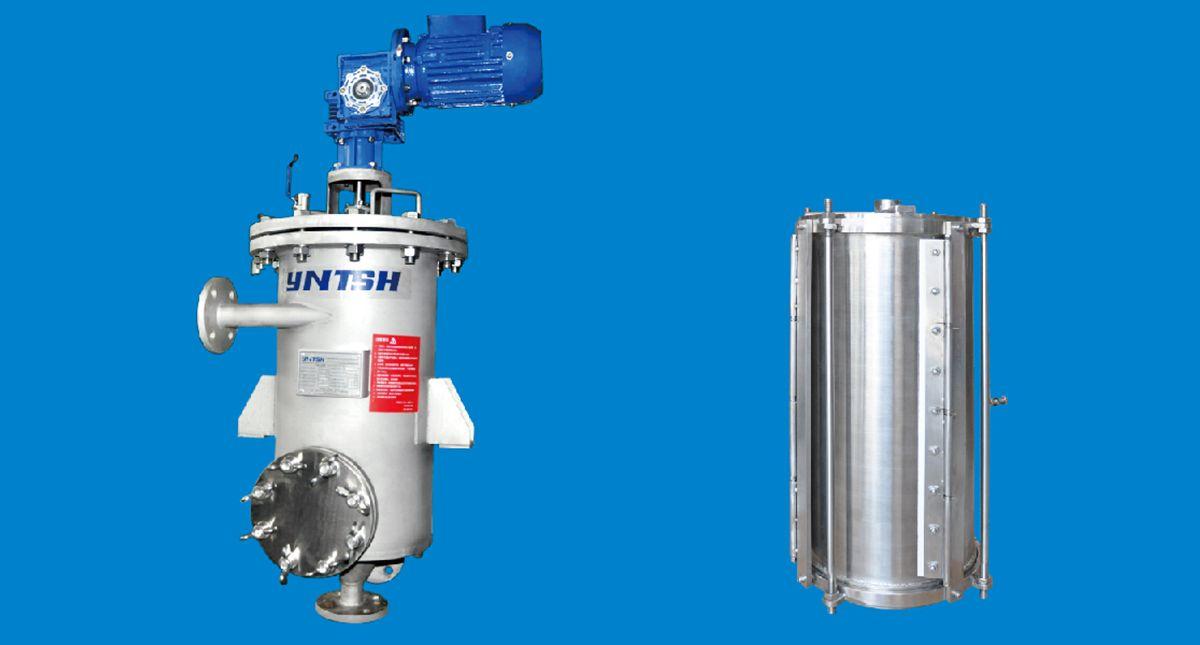

Outer-scraper automatic self cleaning filter
XF – S3 series out-scraper self cleaning filter is designed specifically for paper making industry, solving the problem of coating and pulp filtering. It can remove broken paper and streaks and reduce the emissions impact to environment, and make sure the work time and product quality in greatest extent.
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration
-
Features
1.External scraping filtration method is adopted to effectively extend the filtration time and reduce the waste of materials under the same filtration area2.Adapt adjustment of miscellaneous equipment ensures that the filter will not be affected by the wear when working for a long time;3.Filter elements are made by mold, the roundness deviation do not exceed 0.5 mm to enrure the scraper will be completely fit to the elements;4.Humanization design the drain valve would open just when impurity is collected to a certain extent after cleaning several times so as to reduce material waste.
Automatic cleaning filter meshIt uses the speed reducer to drive the cyclotron scraper and clean the dirt attached on the mesh to keep the cartridge filtration function. The unique clear design keeps flowing unblocked forever. Precision scraper pressure and angle design ensure zero damage to mesh in a short time and it is durable and can be changed quickly.
Wedge filter screen working pressure optionWedge filter screen 1mmSuitable for Working pressure lower than 16kg/cm2Wedge filter screen 1.5mmSuitable for Working pressure lower than 16-30kg/cm2Wedge filter screen 1.8mmSuitable for Working pressure higher than 30kg/cm2(standard for Φ85mm)
Standard sizeA: OD:85mm,168mm,268mmL:Standard filter mesh length 600mm
-
