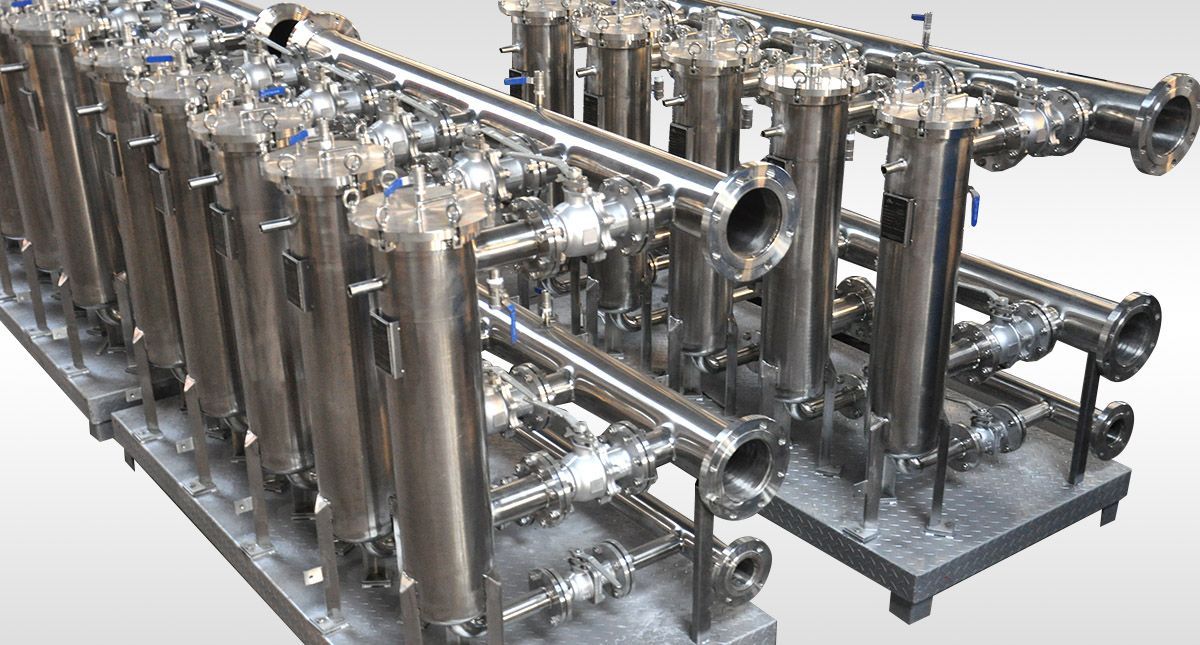

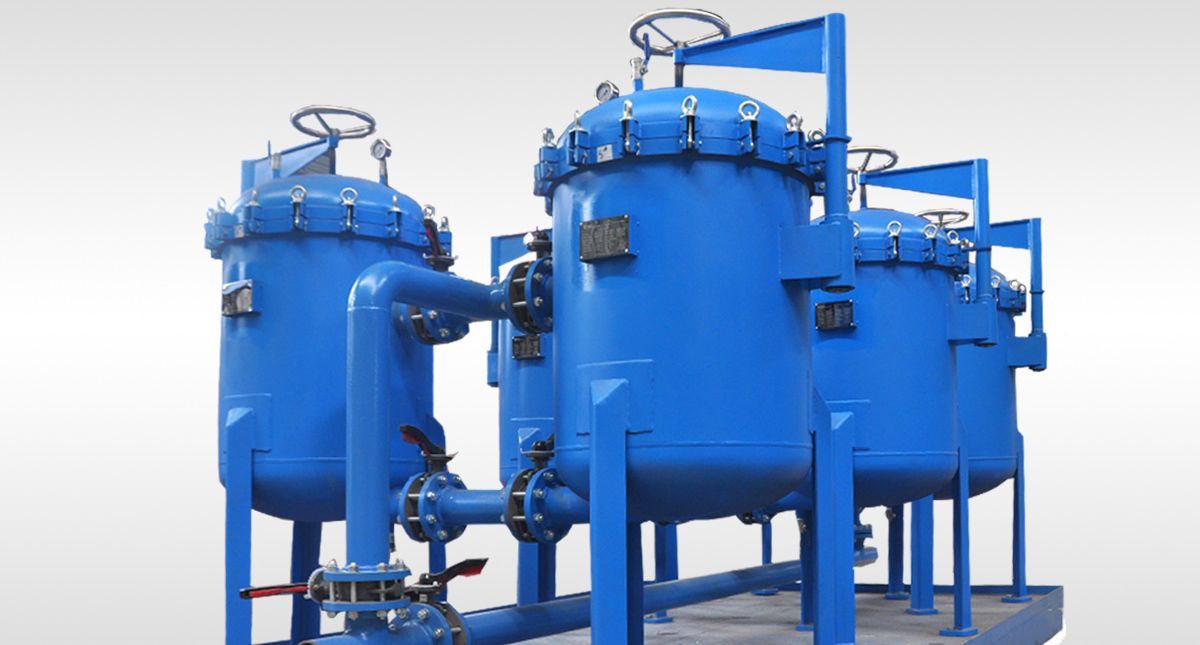

INOCO SGD-ST Series connection bag filter is designed for continuous filtering condition. Filter system consists of two or more single bag filter units. Filter system can use clamp type single bag filter for coarse filtration, side-in bag filter for various working conditions of filtration, or use top-in filter in the face of more stringent conditions. Filter system saves space and it is easy to expand with strong flexibility. Each filter unit is independent, each replacement of filter bag is also independent, therefore the filter system can work without interruption.
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration
Characteristics
2-8 sets of parallel design, replacement of filter bag does not affect the filtration system.
Carbon steel, stainless steel 304, 316 L, 2205 material is optional.
Treatment of sand blasting or polishing is easy to clean.
Standard design, 2# bag filter is the common one.
Unified 2 section welding design process．
The head uses high quality sealing．
Stainless steel support filter basket．
Flexible opening method, you can use ring bolts for convenient opening．
GB150 "CS" or ASME "U" is available.
Instruments can be installed as a complete set with filter.
Model selection
|
Code
|
SGD-M-2
|
SGD-M-3
|
SGD-M-4
|
SGD-M-5
|
SGD-M-6
|
SGD-M-7
|
SGD-M-8
|
|
Filter bag No.
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
|
Filter bag model
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Flow rate
（M3/M) |
0.5306
|
0.7959
|
1.0612
|
1.3265
|
1.5918
|
1.8571
|
2.1224
|
|
Volumn
(M3) |
0.062535
|
0.097403
|
0.13265
|
0.205418
|
0.248245
|
0.290693
|
0.32594
|
|
Weight
（KG) |
145
|
222
|
285
|
362
|
430
|
498
|
566
|
|
Pressure
Mpa |
1.03
|
1.03
|
1.03
|
1.03
|
1.03
|
1.03
|
1.03
|
|
Inlet/Outlet
|
3''
|
4''
|
4''
|
6''
|
6''
|
6''
|
6''
|
|
A
|
24''
|
36''
|
48''
|
60''
|
72''
|
84''
|
96''
|
|
B
|
23''
|
35''
|
47''
|
59''
|
71''
|
83''
|
95''
|
|
C
|
7-3/4''
|
8-1/4''
|
8-1/4''
|
9-15/16''
|
9-15/16''
|
9-15/16''
|
9-15/16''
|
|
D
|
24-3/16''
|
24-11/16''
|
25-3/4''
|
25-3/4''
|
25-3/4''
|
25-3/4''
|
25-3/4''
|
|
E
|
47-1/2''
|
48''
|
48''
|
49-1/16''
|
49-1/16''
|
49-1/16''
|
49-1/16''
|
System
INOCO now is changing from a single filter supplier to a strong comprehensive ability and technology service filter supplier. No matter what industry you are in, we can meet your fluid system requirement.Professional manufacture
INOCO gets the GB150 and ASME manufacture license which can ensure bag filter reliability and safety for design and manufacture.
Rich filtration experience
INOCO has more than ten years filtration experience, ever serviced for 25000 enterprises and could choose the correct and suitable solution in time according to your condition.
Strict quality standard
INOCO filters are in accordance with ISO9001 quality standard, meanwhile gets the CE certificate, also can be inspected by German Rhine TUV.
Individual service
INOCO can fulfill your special requirement just like line fluorine and 2507 material or pressure more than 10 Mpa. We just want to satisfy you without MOQ requirement.
Standardization
Single bag filter including all fittings are all standardized. We can manufacture 2000 sets each month and our stock can be at least 100 sets.
Quick open structure
Easy operation and high efficiency bag filters are widely applied to application of high capacity and process of frequent replacement of bags, and are also most suitable for mass production and safe filtration.
High performance structure
It is suitable for all the harsh filtration requirement. INOCO takes high standard to design and manufacture including its high performance structure and fine cast parts.
Filter sealing structure
Three point press ring ensures well sealing for filter housing and bags. Incidental tools make operation easy and simple.
Most reasonable flow structure
The design of side in and bottom out can ensure liquid discharge completely, and provide Tangent position outlet for your option.
Filter bag
Multiple function bags for your options
Without silicone oil acupuncture blanket
Firmly welded structure
The filter material will not lose hair scattered
