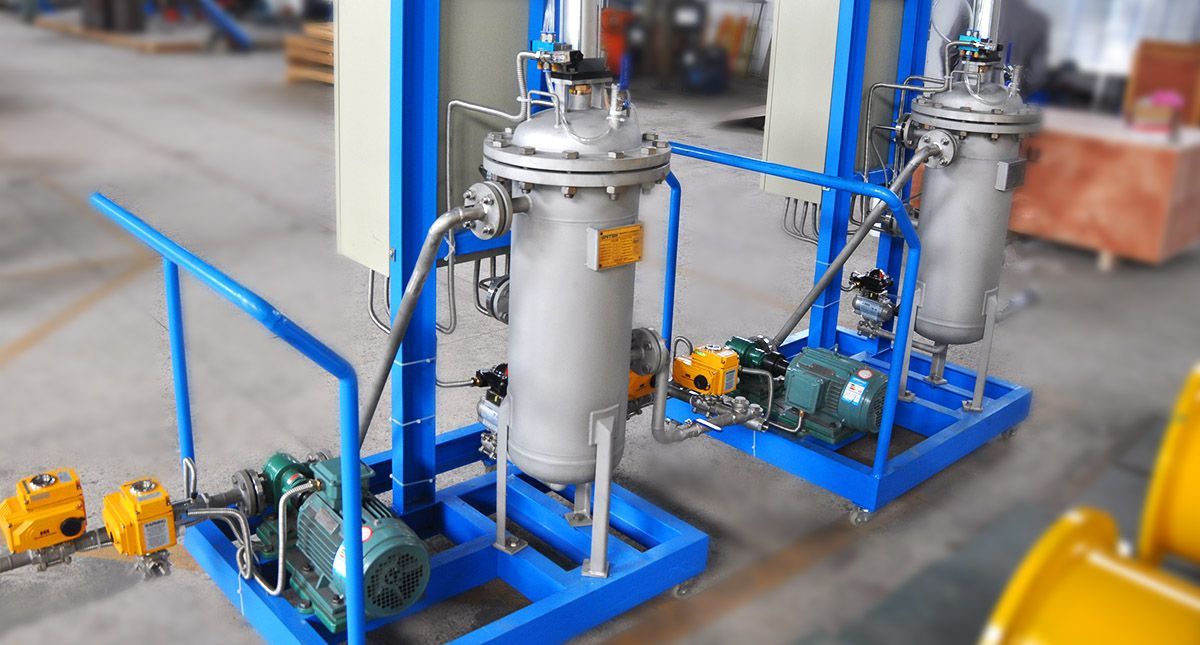

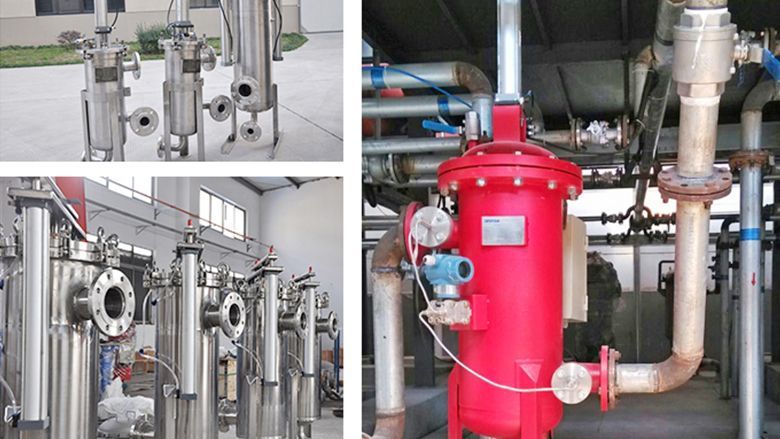

Cylinder scraper automatic self cleaning filter

XF-S series cylinder scraper automatic self cleaning filter is the ideal choice of filtering high viscosity, high corrosion resistance, and high pressure liquid.

  • Product Overview

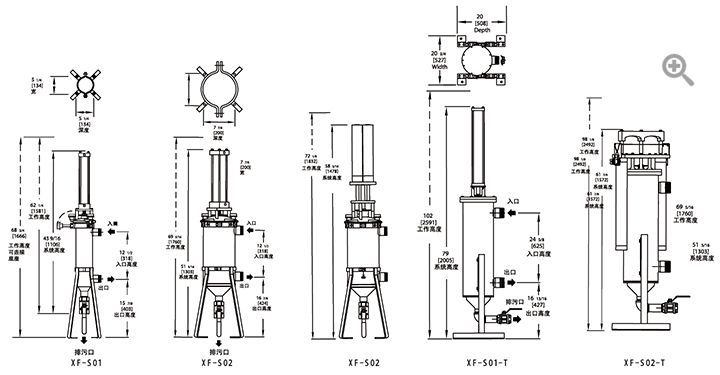

  • Drawings and Data
  • applied Range
  • Product Configuration

XF-S series scraper filter is self-development by INOCO, this new generation of mechanical self-cleaning filter has reached the world advanced technology level. Different with back washing self-cleaning water filter, scraper filter is not only used for water filtration, but also widely used in the self-cleaning filtering of solvents, acid alkali, polymer, coating adhesive materials - so on, it has higher efficiency - precision of range 30-1500 microns. It can filter liquid viscosity up to 800000 cp, - also be applied in water treatment, petrochemical, metallurgy, electric power, chemical, paint, printing ink, paper, food- beverage, pharmaceutical, metal processing industries -etc.
XF-S series scraper filter which is fully automatic operation, high filtration precision, stable - reliable performance is an efficiency choice of replacing traditional manual filter or use dumping type material filter. In many areas it can replace the traditional cartridge filters, bag filters, basket filters, vibrating screen filters.

Parts material

Filter body   CS\ SS304\SS316L Resistant to acid alkali corrosion SS316L performance better
Mesh SS304/SS316L
Drive Shaft seal PTFE Teflon suitable for all kinds of solvent, acid or alkali liquid, the highest temperature 230℃
Sealing ring NBR acrylic rubber, applicable to most of the neutral - oil liquid, the highest temperature 120℃
VITON fluorine rubber Resistant to acid - alkaline liquid - the majority of the solvent, the highest temperature 230℃
Scraper SF type is super wear resistant composite material, SS type is Wear resistant stainless steel blade
foot support SS304


Working Principle
INOCO mechanical cleaning filter’s operation principle is very simple: install the filter screen (2) in a stainless steel cylindrical shell(1). When unfiltered liquid flows into the shell from the inlet (3), solid impurities were leached - deposited on the inner surface of the screen. Filtered liquid flows out from the outlet (4). When filter screen need cleaning (depending on the time, pressure differential, or manually choose), a clean dish tightened with spring scrapes the mesh inside surface back - forth constantly - removes the deposition of solid material. When the debris is separated from gap of the filter screen, wash dish will send the dirt into the bottom of the shell (6) - discharged through the flow channel(7).

Pneumatic cleaning plate drives through air pressure (60-80 psi @ 5 CFM). S-01 - S-02 filter’s main characteristic is that they can be driven by single cylinder or double cylinder. The smaller S- 01 model is only equipped with a cylinder.




Model

XF-S01
XF-S01-T
XT-S02

Weight

35bs(16kg)
75bs(34kg)
215bs(97.5kg)

Height

61.25in(1556mm)
69.25in(1760mm)
102in(2591mm)

Total capacity

0.94gal(3.5liters)
3.9gal(14.8liters)
11gal(41.6liters)

Drain cham ber capacity

4floz(119ml)
25gal(0.74liters)
1.5gal(6liters)

Filter area

112in772cm2
264in1703cm2
610in3935cm2

Flow rate range

2-20gpm/0.45-4.5m3/hr
20-60gpm/4.5-13.6m3/hr
60-200gpm/13.6-45.4m3/hr

Max temperature

350°F(177℃)
350°F(177℃)
350°F(177℃)

Max pressure

300psi(21 bar)
150psi(10.5 bar)standard
150psi(10.5 bar)standard

Air driver need

400/800=60 psiat5 cfm(4 bar 8.5m3/min) 1600=80 psiat5 cfm (5 bar 8.5m3/min)

Control power

available for the three type,limit to automatic 110/220v,50/60 HZ single
