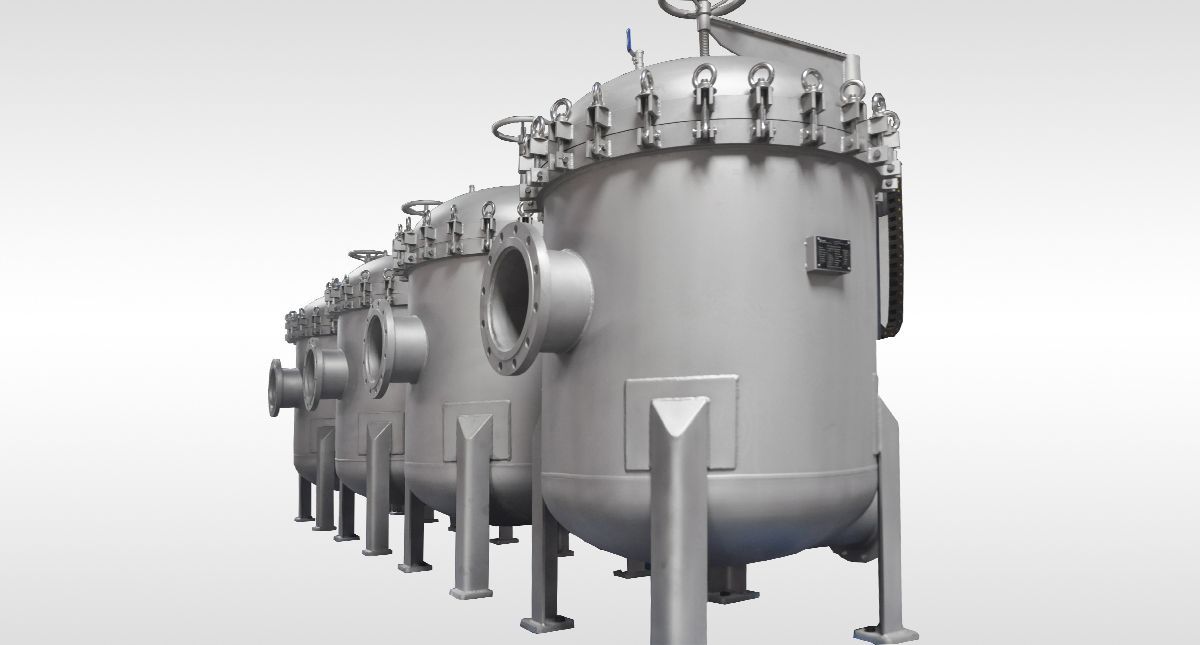

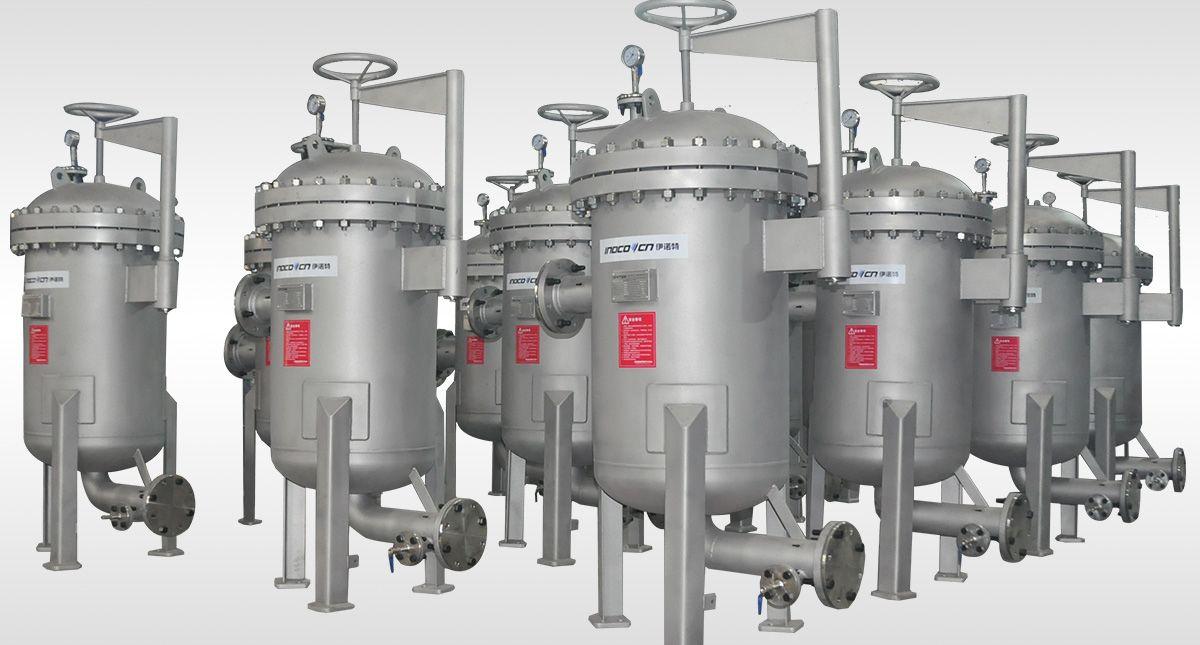

Multiple bags filter

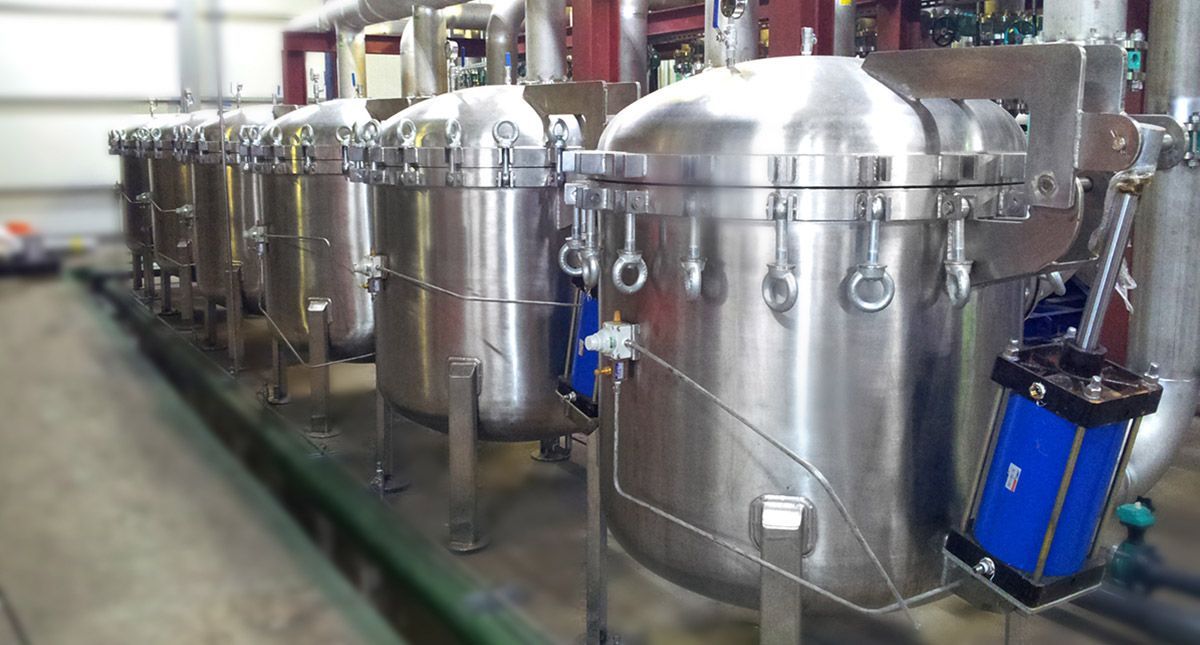

INOCO SGD-S series multiple bags filter is suitable for flow rate with 60~5000M3/H conditions. Filter with a small number of filter bags is equipped with hand wheel and davit arm, which is configured with standard bearing, so it is convenient for opening and operation. For filter with more than 12 bags, we can choose the cylinder or hydraulic to assist, only 1 person is needed during opening and closing process. The auxiliary device includes a pressure relief valve, a positioning pin and so on, which can ensure the safe operation.

  • Product Overview
  • Drawings and Data
  • applied Range
  • Product Configuration


Technical parameters
Manufacturing standards: GB150 "CS", ASME "U" stamp.
Working pressure: 0.6 MPa ~ 5.0 MPa.
Design temperature: 0 ~ 80 ℃.
Applicable medium: water, chemicals, gas and other flammable and explosive materials.
Pressure and temperature depend on the strength and material of filter elements. Please consult us if you are in special condition.



Features:
Filter bag support: electrolytic polishing stainless steel porous support filter basket.
Unique three point fixed mode of filter bag, to ensure that there is good sealing performance between filter bag and filter shell, and hydraulic or pneumatic cylinder is optional.
High quality O ring seal, to guarantee the operation is convenient and reliable.

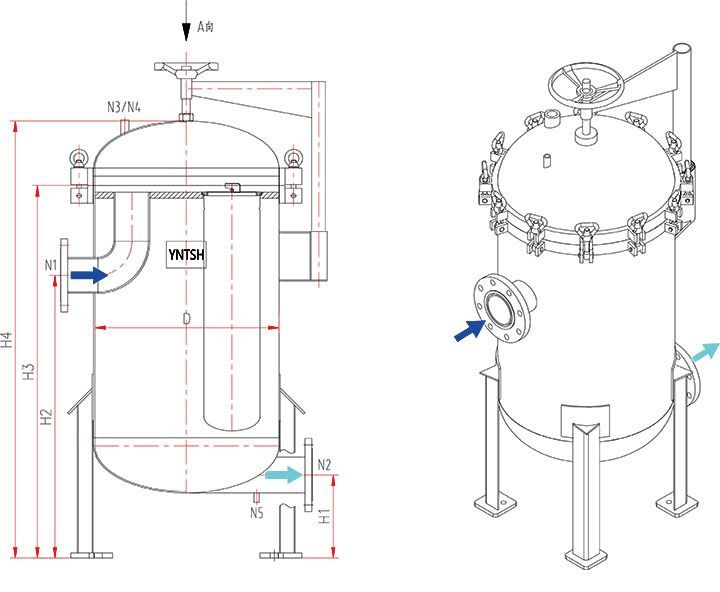

The design of side in and bottom out ensures that the liquid can be completely discharged. Meanwhile there is tangent-position outlet can be chosen.
Standard mode is for 2 ~ 24 bag (1# and 2# bag), and the largest filter we can produce now is 40-bag ones.

Material
Shell material: # 20, 304, 316L、2205、2507.
Sealing gasket: Silicone, NBR, Viton.
Filter bag material: Polyester, PP, Nylon, PTFE, Glass Fiber

Model selection

Model

Bag model

Filtration  area (m2)

Max. flow  rate (m3/h)

Pressure
(Mpa)

Inlet &outlet

Material

SGD-S2

2

2

0.9

50

1.0

2-1/2"

Q345R/304/316L/F55

SGD-S3

2

3

1.35

75

1.0

3"

Q345R/304/316L/F55

SGD-S4

2

4

1.8

100

1.0

4"

Q345R/304/316L/F55

SGD-S5

2

5

2.25

125

1.0

5"

Q345R/304/316L/F55

SGD-S6

2

6

2.7

150

1.0

6"

Q345R/304/316L/F55

SGD-S8

2

8

3.6

200

1.0

6"

Q345R/304/316L/F55

SGD-S9

2

9

4.05

225

1.0

8"

Q345R/304/316L/F55

SGD-S10

2

10

4.5

250

1.0

8"

Q345R/304/316L/F55

SGD-S12

2

12

5.4

300

1.0

10"

Q345R/304/316L/F55

SGD-S16

2

16

7.2

400

1.0

12"

Q345R/304/316L/F55

SGD-S18

2

18

8.1

450

1.0

12"

Q345R/304/316L/F55

SGD-S24

2

24

9.0

600

1.0

12"

Q345R/304/316L/F55

Accuracy :0.1, 0.2 .0.3 , 0.5, 1 , 5, 10, 15, 25, 50, 100, 200, 300, 400, 500, 600 Microns



System

INOCO now is changing from a single filter supplier to a strong comprehensive ability and technology service filter supplier. No matter what industry you are in, we can meet your fluid system requirement.

Professional manufacture
INOCO gets the GB150 and ASME manufacture license which can ensure bag filter reliability and safety for design and manufacture.

Rich filtration experience
INOCO has more than ten years filtration experience, ever serviced for 25000 enterprises and could choose the correct and suitable solution in time according to your condition.

Strict quality standard
INOCO filters are in accordance with ISO9001 quality standard, meanwhile gets the CE certificate, also can be inspected by German Rhine TUV.

Individual service
INOCO can fulfill your special requirement just like line fluorine and 2507 material or pressure more than 10 Mpa. We just want to satisfy you without MOQ requirement.

Standardization
Single bag filter including all fittings are all standardized. We can manufacture 2000 sets each month and our stock can be at least 100 sets.

Quick open structure
Easy operation and high efficiency bag filters are widely applied to application of high capacity and process of frequent replacement of bags, and are also most suitable for mass production and safe filtration.

High performance structure
It is suitable for all the harsh filtration requirement. INOCO takes high standard to design and manufacture including its high performance structure and fine cast parts.

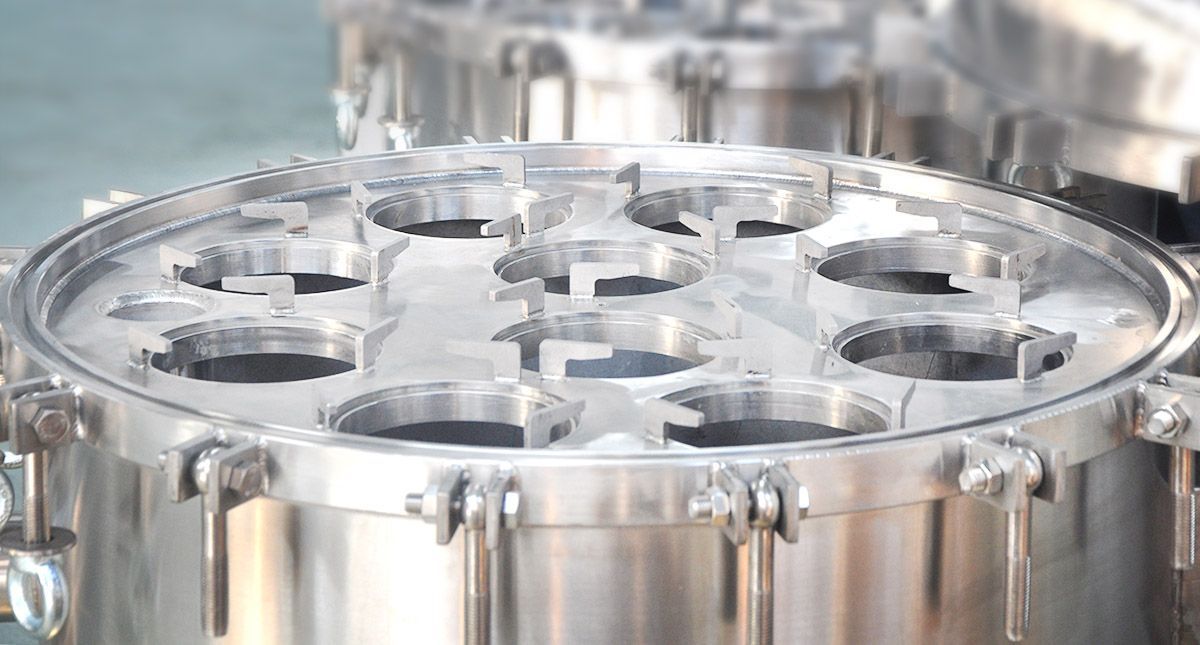

Filter sealing structure
Three point press ring ensures well sealing for filter housing and bags. Incidental tools make operation easy and simple.

Most reasonable flow structure
The design of side in and bottom out can ensure liquid discharge completely, and provide Tangent position outlet for your option.

Filter bag
Multiple function bags for your options
Without silicone oil acupuncture blanket
Firmly welded structure
The filter material will not lose hair scattered
