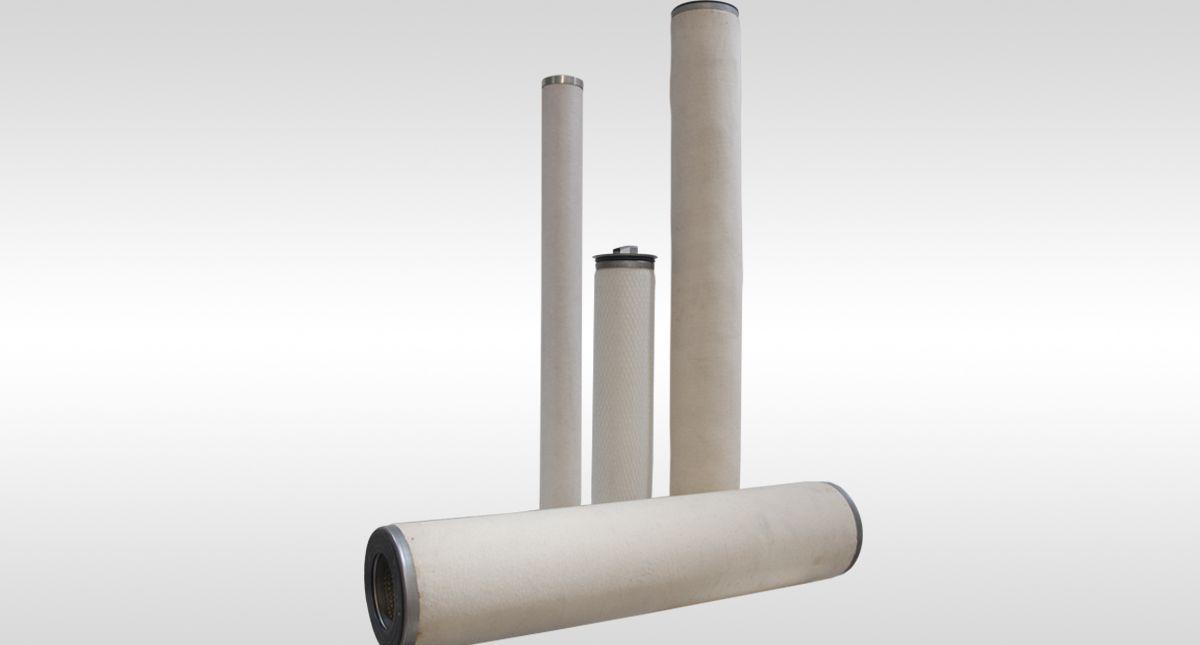

GF gas-liquid separator
INOCO GF Series elements use high-density and glass fiber, designed to overall monolithic pipe structure in order to avoid Breakage leakage, elements surface is done by Oleophobic and hydrophobic treatment to meet the requirements of various levels of precision.
- Product Overview
- Drawings and Data
- applied Range
- Product Configuration
Structure
Spec: External diameter 63、86、110、140mm
Length: 500、920、1000mm
Element support: Stainless steel or others
Performance paremeters
Initial pressure drop: ≤ 0.012MPa
Allowed pressure drop: 0.1MPa
Structure strength: more than 1Mpa
Temperature range: -40℃~150℃
Accuracy range: 0.1、0.3、0.5、1、3、5、10μm
Design specs
Elements strength is according with ISO2941-83 standard
Elements accuracy is according with ISO19438-2003 standard
Element material
|
Support (L)
|
304、316L
|
|
Filter material (L)
|
Chemical fibre、glass fiber
|
|
Gas accuracy (μm)
|
0.1、0.25、1、2、3、5、10
|
|
Max temp (℃)
|
85℃
|
Parameters
|
Diameter (mm)
|
110、150
|
|
Length (mm)
|
510、920
|
