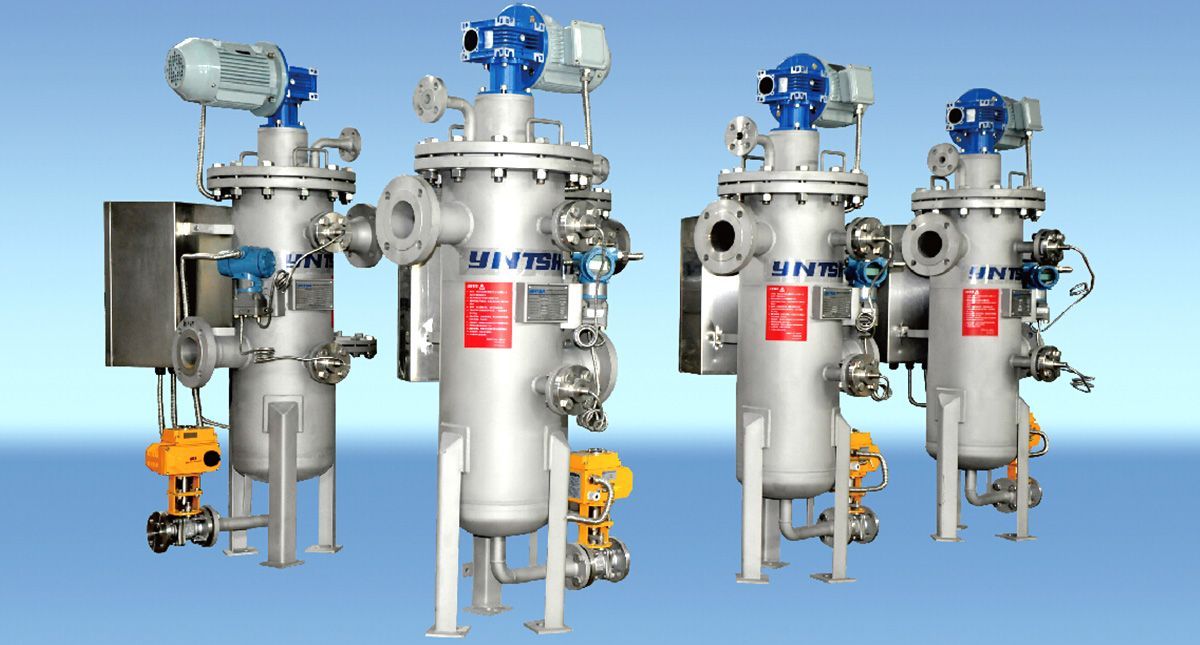

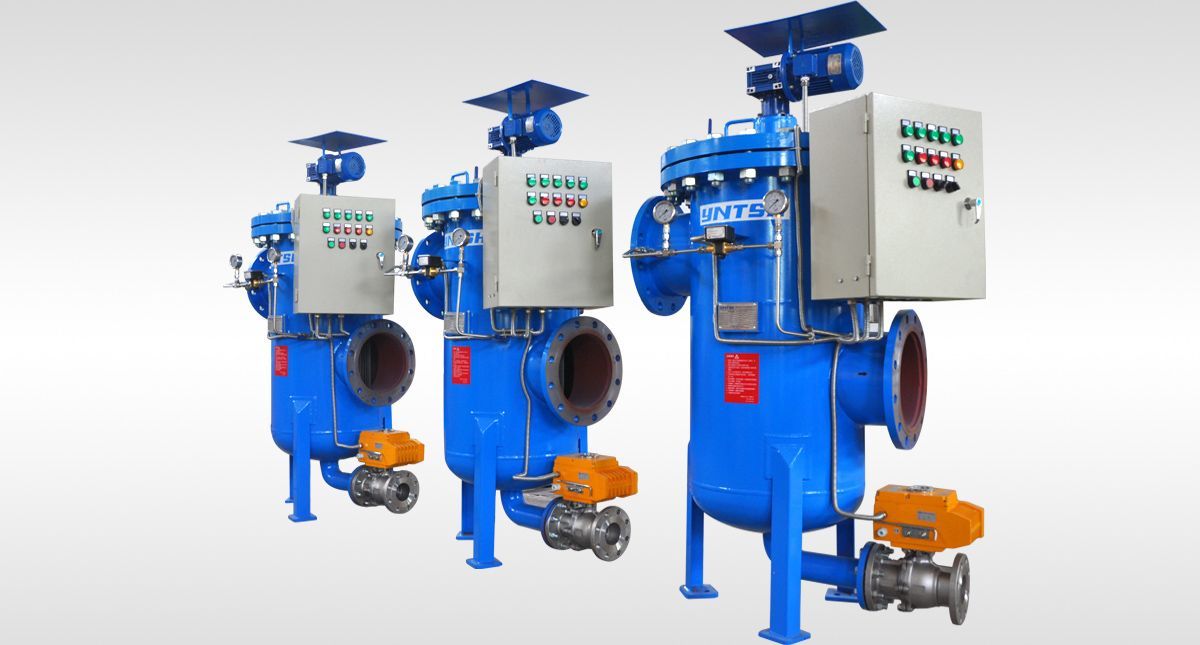

Inner-scraper automatic self cleaning filter

XF – S1 series inner-scraper self cleaning filter is mainly applied to filter media that contains more gravity particles in liquid

  • Product Overview
  • Drawings and Data
  • applied Range
  • Product Configuration

Liquid flows up toward down into filter from inlet then through elements,Lastly flows out from outlet,when collecting enough impurity on surface the scraper which is driven by electric machinery and equiped with correctors will close to elements and rotate to strike off the impury and impurity will be collected by the downstream in collection chamber when collected enough the automatic drain valve opens and let the liquid containing high concentration impurity go,liquid after filtration would be recycled or discharged.

    Ps: inner-scraper: scraper is inside the filtering element; outer-scraper: scraper is outside the filtering element.
    Scraper-strainer Automatic Control Systems

    Major Components Of The System

    1.  Local control - imdication for scraper motor,blown actuator - differential pressure controller:switches,lights,discon nects;alarms,timers  screens as required.
    2. Magnetic force overload breaker protection.
    3. PLC-based control system with adjustable timers for scraper - blowdown opera.
    4. Differential pressure override protection monitoring.
    5. Drain valve driven electric of pneumatic.
    6. Pre-wired  tested for easy installation.

    Control Options
    A Electric power : 120V 230V 380V 400V 460V 480V 575V 1PH  3PH 50  60Hz
    B Custom built to integrate into local control center system allowing for control or supervision of other
    C Several options for local/remote indication,switches,timers, touch screen controls
    D Remote supervision dry contacts,PLC based,4-20mA,audible alarms,DH-485,digital/analog

    Common filter media
    Wax
    Kerosene
    Monomer
    Polymer
    Water treatment
    Vitamin
    Citric acid
    Fermentation broth
    Chitosan cellulose
    Cosmetics
    Penicillin
    Pills
    Protein

      Shampoo
    Silicone solution
    Soap
    Pear alcohol
    Steroid
    Corn syrup
    Wet end additives
    Adhesive
    Chemical agent
    Pigment
    Ink
    Lubricant
    Paint


    Rubber
    Ethanol
    Chocolate
    Candy
    Dairy oil
    Edible oil
    High temperature oil
    Juice
    Processing liquid
    Coolant
    Catalyst
    Diesel
    Resin
    Agarose (Gel)





Model No.

S2-273
S2-325
S2-426
S2-530
S2-630
S2-720
S2-820
S2-920
S2-1020

Pipe diameter(mm)

80
100
200
250
300
350
400
450
500

Flow rate(m3h)

50
150
300
500
700
1100
1500
2000
2500

Filter area(m2)

0.25
0.35
0.66
1.0
1.2
1.5
1.8
2
2.3

Drain valve DN(mm)

25
25
50
50
80
80
80
80
80

Clean water consum ption(one time)(L)

80
80
150
150
350
450
600
800
1000

Motor power(KW)

0.55
0.55
0.55
0.55
0.75
0.75
0.75
0.75
0.75



Model No.

D(mm)
H1(mm)
H2(mm)
H3(mm)
H4(mm)
L1(mm)
L2(mm)
L3(mm)
S2-273
273
950
620
150
1450
236.5
236.5
180
S2-325
325
1070
620
150
1600
282.5
282.5
200
S2-426
426
1275
785
150
1870
343
343
250
S2-530
530
1445
845
150
2200
415
415
300
S2-630
630
1600
1000
200
2455
465
465
350
S2-720
720
1620
1020
200
2550
510
510
400
S2-820
820
1735
1035
200
2700
610
610
450
S2-920
920
1825
1125
200
2800
660
660
500
S2-1020
1020
1850
1200
200
2960
710
710
550
